Common Configuration Sections

Several configuration sections of the installer wizard are identical across all Self-Hosted deployment modes. They are documented here once and referenced from each mode-specific guide. Use the links in those guides to jump to the relevant section below.

Registry

KubeDB Platform requires access to various container registries and Helm repositories to pull necessary images and charts.

Docker Registry: Go to the docker registry section first then look for the following settings

• Proxies: Put registry name for Appscode r.appscode.com and other Public Registries like Docker Hub, GitHub Container Registry (ghcr.io), Kubernetes Registry, Microsoft (mcr.microsoft.com), and Quay.
• Helm Repositories: In the helm repositories section put your helm repository url If using private or authenticated registries, provide:
• Credentials: Username and Password.
• Certs: Upload CA Cert, Client Cert, and Client Key if required for mutual TLS.
• Image Pull Secrets: Define the secrets used by the cluster to authenticate with the registries. You can enable create namespace during helm install, allow nondistributable artifacts and insecure option for insecure registry

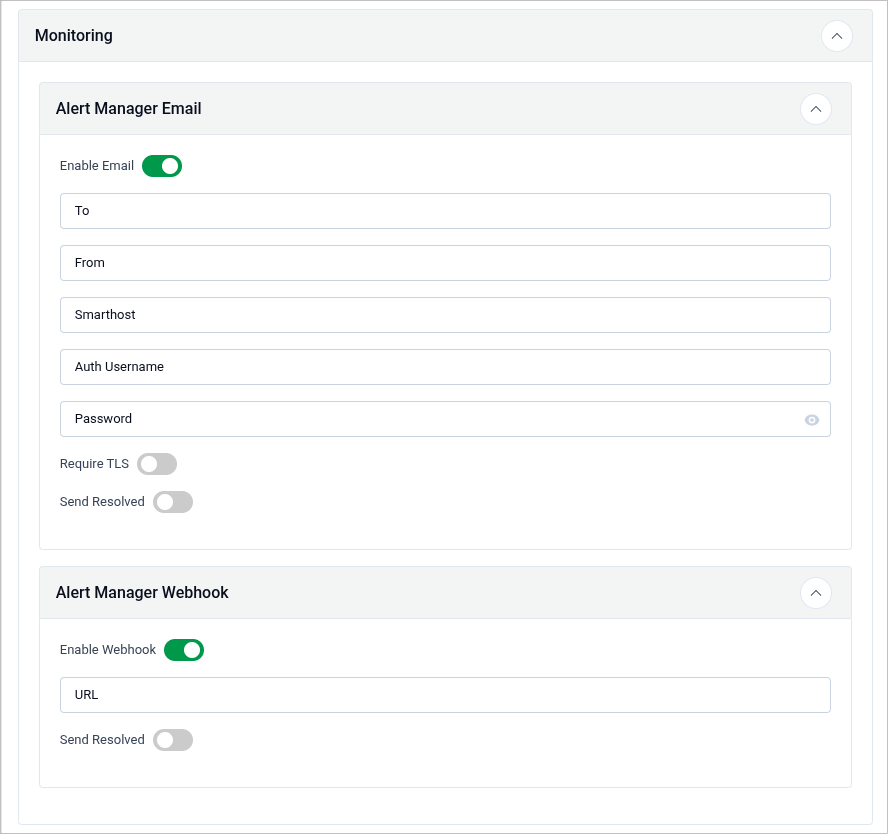

Monitoring

Use the Monitoring section to configure Alertmanager notifications for platform alerts for the site admin.

• Alert Manager Email: Enable email notifications for Alertmanager alerts.
  • Enable Email: Turns email notifications on or off.
  • To: The recipient email address. For Gmail, you can also use plus addressing such as [email protected].
  • From: The sender email address shown in the message. For Gmail, use the same address as Auth Username unless you have configured a verified alias.
  • Smarthost: The SMTP server address. For Gmail, use smtp.gmail.com:587.
  • Auth Username: The SMTP login username. For Gmail, this should be the real Gmail or Google Workspace mailbox used to authenticate.
  • Password: The SMTP password. For Gmail, use an App Password generated from https://myaccount.google.com/apppasswords.
  • Require TLS: Enables TLS for the SMTP connection. Leave this enabled for Gmail.
  • Send Resolved: Sends a follow-up notification when an alert returns to a healthy state.
• Alert Manager Webhook: Send alerts to an endpoint that accepts Alertmanager’s generic webhook payload.
  • Enable Webhook: Turns webhook delivery on or off.
  • URL: The destination webhook URL. Some systems embed the secret directly in the URL.
  • Send Resolved: Sends a follow-up notification when an alert returns to a healthy state.

Tip: For Google Chat, a supported workaround is to generate a space email address in Google Chat settings and use that address in the To field.

TLS

Configure TLS certificates for secure communication. You can choose the Issuer type from the following list.

• External: Use this if you already have certificates from an external provider.

  • CA CERT: Paste the Certificate Authority certificate.
  • Certificate CERT: Paste the certificate issued for your domain.
  • Certificate Key: Paste the private key associated with the certificate.

• CA: Use this if you want AppsCode to manage your certificates with its internal CA.

  • CA CERT: Paste the internal CA certificate.
  • CA Key: Paste the internal CA key.

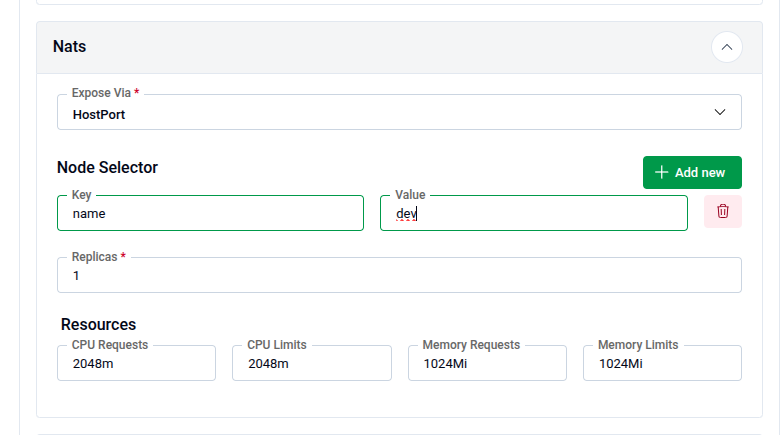

NATS

Configure NATS, which is used as the internal messaging system for the platform.

Expose Via: Choose how NATS will be exposed:

• HostPort: Exposes NATS directly on the node’s network interface.

  • Node Selector: Specify the node label (Key and Value) to control where NATS will be scheduled.

• Ingress: Use this option to expose NATS externally via an ingress controller. Replicas: For production, ensure at least 1 replica is active (consider 3 for high availability). Resources: Configure CPU Requests, CPU Limits, Memory Request and Memory Limit

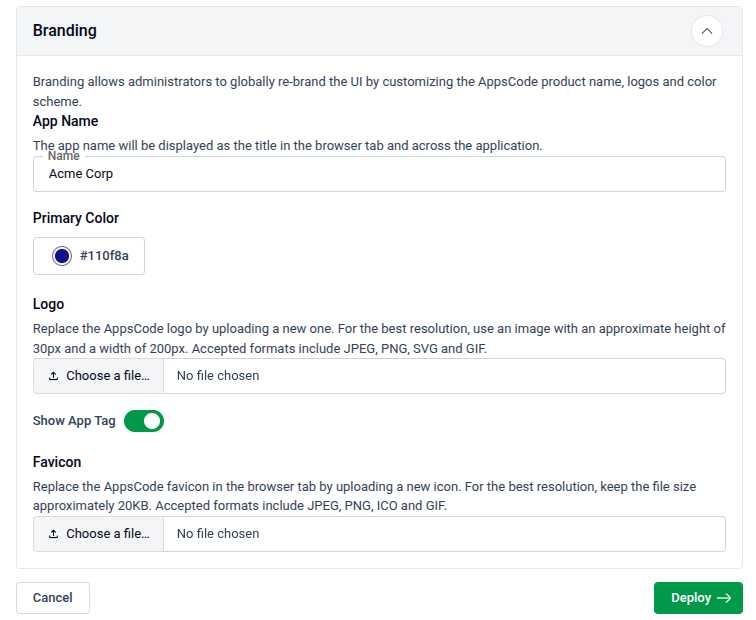

Branding & UI Customization

Administrators can globally re-brand the KubeDB Platform interface to match corporate identity.

• App Name: Changes the browser tab title.
• Primary Color: Enter a Hex code (default: #009948).
• Assets:
  • Logo: Upload a 200x30px image (SVG/PNG recommended).
  • Favicon: Upload a 20KB icon file.
• App Tag: Toggle “Show App Tag” to display or hide the version/tagging info in the UI.

Prerequisites

Before you begin, please ensure your Kubernetes cluster meets the following minimum system requirements:

• Worker Nodes: At least one dedicated worker node.
• CPU: 4–6 vCPUs.
• Memory: 16 GB of RAM.
• Networking: A routable IP address for external connectivity.

You will get an instruction to deploy a k3s cluster in Ubuntu VM, or you can skip this step if you already have a cluster.

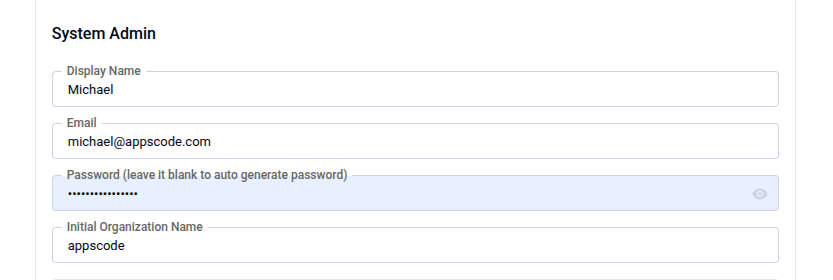

Global Administrative Settings

These credentials define the primary super-user and the initial organizational structure.

• System Admin: In this section, provide the administrator’s following information.
  • Admin Account Display Name: The display name for the administrator account.
  • Admin Account Email: The email address for the administrator account.
  • Admin Account Password: The password for the administrator account. You may manually set a password or leave it blank to allow the system to auto-generate a secure administrative password.
  • Initial Organization Name: You can choose what will be the initial organization name for your account

Additional configuration for EKS cluster

Prerequisite:

• EBS CSI Driver must be installed
• AWS Load Balancer Controller must be installed

Run the following command to get the Kube API Server and put it in the API server field:

aws eks describe-cluster --name <cluster-name> --region <region> --query "cluster.endpoint" --output text

Run the following command to get the Subnet IDs and add them:

aws ec2 describe-subnets --filters "Name=vpc-id,Values=$(aws eks describe-cluster --name <cluster-name> --region <region> --query "cluster.resourcesVpcConfig.vpcId" --output text)" "Name=map-public-ip-on-launch,Values=true" --region <region> --query "Subnets[*].SubnetId" --output text

Subnet IDs: Make sure you have added the allocation id of Target IP as well. Run the following command to create EIP Allocation IDs aws ec2 allocate-address --region <region>

EIP Allocation IDs: Give EIP allocation IDs for your public subnets.

Domain White List and Proxy Servers

• Add domain one by one for whitelisting
• Proxy Servers: If you have proxy servers then put HTTP Proxy, HTTPS Proxy and No Proxy
• Put Login and Logout URL for your app

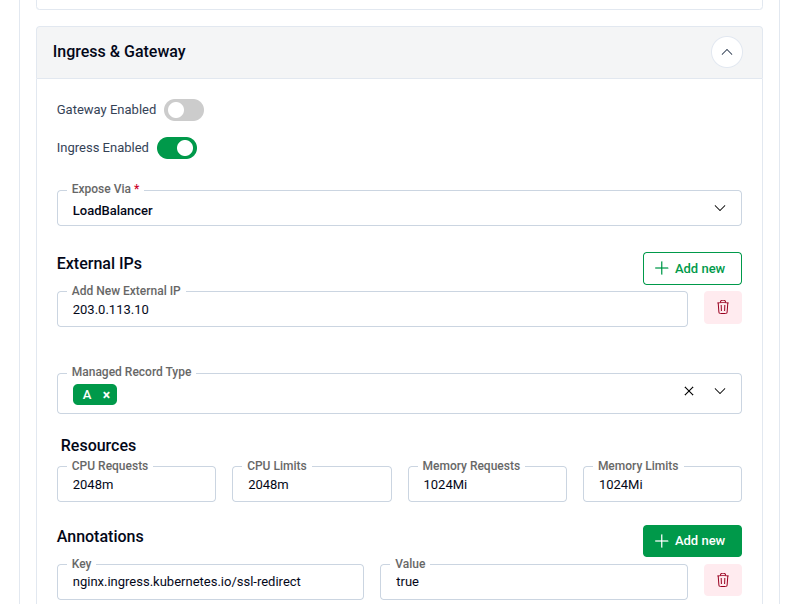

Ingress & Gateway

Configure how the application is exposed to the internet or your internal network.

• Ingress & Gateway: Enable either the Gateway API or standard Ingress.

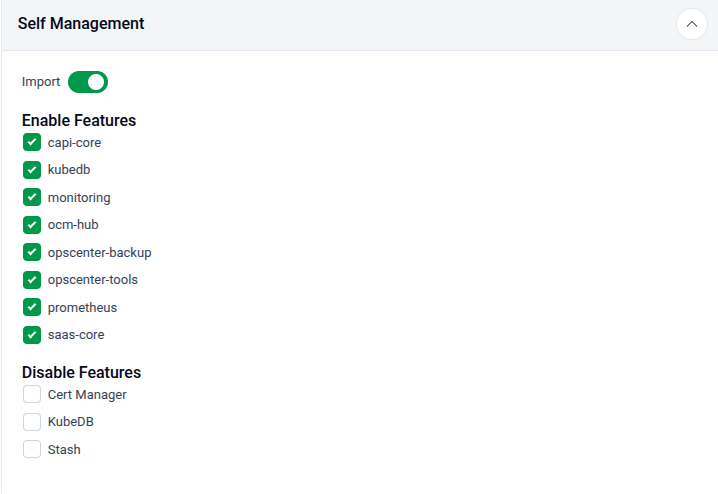

Self Management

In this section you can enable or disable features.
