New to KubeDB? Please start here.
Elasticsearch QuickStart
This tutorial will show you how to use KubeDB to run an Elasticsearch database.
Before You Begin
At first, you need to have a Kubernetes cluster, and the kubectl command-line tool must be configured to communicate with your cluster. If you do not already have a cluster, you can create one by using kind.
Now, install the KubeDB operator in your cluster following the steps here.
To keep things isolated, this tutorial uses a separate namespace called demo throughout this tutorial.
$ kubectl create namespace demo
namespace/demo created
$ kubectl get namespace
NAME STATUS AGE
demo Active 9s
Note: YAML files used in this tutorial are stored in guides/elasticsearch/quickstart/overview/yamls folder in GitHub repository kubedb/docs.

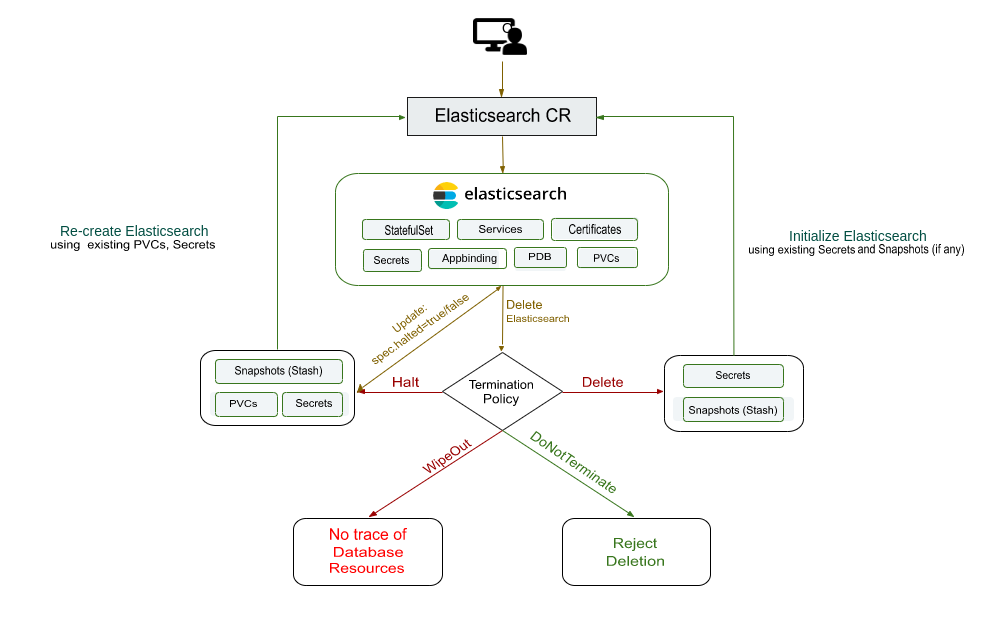

We have designed this tutorial to demonstrate a production setup of KubeDB managed Elasticsearch. If you just want to try out KubeDB, you can bypass some safety features following the tips here.
Find Available StorageClass
We will have to provide StorageClass in Elasticsearch CRD specification. Check available StorageClass in your cluster using the following command,
$ kubectl get storageclass
NAME PROVISIONER RECLAIMPOLICY VOLUMEBINDINGMODE ALLOWVOLUMEEXPANSION AGE
standard (default) rancher.io/local-path Delete WaitForFirstConsumer false 14h
Here, we have standard StorageClass in our cluster from Local Path Provisioner.
Find Available ElasticsearchVersion
When you install the KubeDB operator, it registers a CRD named ElasticsearchVersion. The installation process comes with a set of tested ElasticsearchVersion objects. Let’s check available ElasticsearchVersions by,
$ kubectl get elasticsearchversions
NAME VERSION DISTRIBUTION DB_IMAGE DEPRECATED AGE
kubedb-searchguard-5.6.16 5.6.16 KubeDB kubedb/elasticsearch:5.6.16-searchguard-v2022.02.22 4h24m
kubedb-xpack-7.12.0 7.12.0 KubeDB kubedb/elasticsearch:7.12.0-xpack-v2021.08.23 4h24m
kubedb-xpack-7.13.2 7.13.2 KubeDB kubedb/elasticsearch:7.13.2-xpack-v2021.08.23 4h24m
xpack-8.11.1 7.14.0 KubeDB kubedb/elasticsearch:7.14.0-xpack-v2021.08.23 4h24m
kubedb-xpack-8.11.1 7.16.2 KubeDB kubedb/elasticsearch:7.16.2-xpack-v2021.12.24 4h24m
kubedb-xpack-7.9.1 7.9.1 KubeDB kubedb/elasticsearch:7.9.1-xpack-v2021.08.23 4h24m
kubedb-xpack-8.2.3 8.2.0 KubeDB kubedb/elasticsearch:8.2.0-xpack-v2022.05.24 4h24m
opendistro-1.0.2 7.0.1 OpenDistro amazon/opendistro-for-elasticsearch:1.0.2 4h24m
opendistro-1.0.2-v1 7.0.1 OpenDistro amazon/opendistro-for-elasticsearch:1.0.2 4h24m
opendistro-1.1.0 7.1.1 OpenDistro amazon/opendistro-for-elasticsearch:1.1.0 4h24m
opendistro-1.1.0-v1 7.1.1 OpenDistro amazon/opendistro-for-elasticsearch:1.1.0 4h24m
opendistro-1.10.1 7.9.1 OpenDistro amazon/opendistro-for-elasticsearch:1.10.1 4h24m
opensearch-2.8.0 7.9.1 OpenDistro amazon/opendistro-for-elasticsearch:1.10.1 4h24m
opensearch-2.8.0 7.10.0 OpenDistro amazon/opendistro-for-elasticsearch:1.12.0 4h24m
opendistro-1.13.2 7.10.2 OpenDistro amazon/opendistro-for-elasticsearch:1.13.2 4h24m
opendistro-1.2.1 7.2.1 OpenDistro amazon/opendistro-for-elasticsearch:1.2.1 4h24m
opendistro-1.2.1-v1 7.2.1 OpenDistro amazon/opendistro-for-elasticsearch:1.2.1 4h24m
opendistro-1.3.0 7.3.2 OpenDistro amazon/opendistro-for-elasticsearch:1.3.0 4h24m
opendistro-1.3.0-v1 7.3.2 OpenDistro amazon/opendistro-for-elasticsearch:1.3.0 4h24m
opendistro-1.4.0 7.4.2 OpenDistro amazon/opendistro-for-elasticsearch:1.4.0 4h24m
opendistro-1.4.0-v1 7.4.2 OpenDistro amazon/opendistro-for-elasticsearch:1.4.0 4h24m
opendistro-1.6.0 7.6.1 OpenDistro amazon/opendistro-for-elasticsearch:1.6.0 4h24m
opendistro-1.6.0-v1 7.6.1 OpenDistro amazon/opendistro-for-elasticsearch:1.6.0 4h24m
opendistro-1.7.0 7.6.1 OpenDistro amazon/opendistro-for-elasticsearch:1.7.0 4h24m
opendistro-1.7.0-v1 7.6.1 OpenDistro amazon/opendistro-for-elasticsearch:1.7.0 4h24m
opendistro-1.8.0 7.7.0 OpenDistro amazon/opendistro-for-elasticsearch:1.8.0 4h24m
opendistro-1.8.0-v1 7.7.0 OpenDistro amazon/opendistro-for-elasticsearch:1.8.0 4h24m
opendistro-1.9.0 7.8.0 OpenDistro amazon/opendistro-for-elasticsearch:1.9.0 4h24m
opendistro-1.9.0-v1 7.8.0 OpenDistro amazon/opendistro-for-elasticsearch:1.9.0 4h24m
opensearch-1.1.0 1.1.0 OpenSearch opensearchproject/opensearch:1.1.0 4h24m
opensearch-2.8.0 1.2.2 OpenSearch opensearchproject/opensearch:1.2.2 4h24m
opensearch-2.8.0 1.3.2 OpenSearch opensearchproject/opensearch:1.3.2 4h24m
searchguard-6.8.1 6.8.1 SearchGuard floragunncom/sg-elasticsearch:6.8.1-oss-25.1 4h24m
searchguard-6.8.1-v1 6.8.1 SearchGuard floragunncom/sg-elasticsearch:6.8.1-oss-25.1 4h24m
searchguard-7.0.1 7.0.1 SearchGuard floragunncom/sg-elasticsearch:7.0.1-oss-35.0.0 4h24m
searchguard-7.0.1-v1 7.0.1 SearchGuard floragunncom/sg-elasticsearch:7.0.1-oss-35.0.0 4h24m
searchguard-7.1.1 7.1.1 SearchGuard floragunncom/sg-elasticsearch:7.1.1-oss-35.0.0 4h24m
searchguard-7.1.1-v1 7.1.1 SearchGuard floragunncom/sg-elasticsearch:7.1.1-oss-35.0.0 4h24m
searchguard-7.10.2 7.10.2 SearchGuard floragunncom/sg-elasticsearch:7.10.2-oss-49.0.0 4h24m
xpack-8.11.1 7.14.2 SearchGuard floragunncom/sg-elasticsearch:7.14.2-52.3.0 4h24m
searchguard-7.3.2 7.3.2 SearchGuard floragunncom/sg-elasticsearch:7.3.2-oss-37.0.0 4h24m
searchguard-7.5.2 7.5.2 SearchGuard floragunncom/sg-elasticsearch:7.5.2-oss-40.0.0 4h24m
xpack-8.11.1 7.5.2 SearchGuard floragunncom/sg-elasticsearch:7.5.2-oss-40.0.0 4h24m
searchguard-7.8.1 7.8.1 SearchGuard floragunncom/sg-elasticsearch:7.8.1-oss-43.0.0 4h24m
xpack-8.11.1 7.9.3 SearchGuard floragunncom/sg-elasticsearch:7.9.3-oss-47.1.0 4h24m
xpack-6.8.10-v1 6.8.10 ElasticStack elasticsearch:6.8.10 4h24m
xpack-6.8.16 6.8.16 ElasticStack elasticsearch:6.8.16 4h24m
xpack-6.8.22 6.8.22 ElasticStack elasticsearch:6.8.22 4h24m
xpack-7.0.1-v1 7.0.1 ElasticStack elasticsearch:7.0.1 4h24m
xpack-7.1.1-v1 7.1.1 ElasticStack elasticsearch:7.1.1 4h24m
xpack-7.12.0 7.12.0 ElasticStack elasticsearch:7.12.0 4h24m
xpack-7.12.0-v1 7.12.0 ElasticStack elasticsearch:7.12.0 4h24m
xpack-7.13.2 7.13.2 ElasticStack elasticsearch:7.13.2 4h24m
xpack-8.11.1 7.14.0 ElasticStack elasticsearch:7.14.0 4h24m
xpack-8.11.1 7.16.2 ElasticStack elasticsearch:7.16.2 4h24m
xpack-7.17.3 7.17.3 ElasticStack elasticsearch:7.17.3 4h24m
xpack-7.2.1-v1 7.2.1 ElasticStack elasticsearch:7.2.1 4h24m
xpack-7.3.2-v1 7.3.2 ElasticStack elasticsearch:7.3.2 4h24m
xpack-7.4.2-v1 7.4.2 ElasticStack elasticsearch:7.4.2 4h24m
xpack-7.5.2-v1 7.5.2 ElasticStack elasticsearch:7.5.2 4h24m
xpack-7.6.2-v1 7.6.2 ElasticStack elasticsearch:7.6.2 4h24m
xpack-7.7.1-v1 7.7.1 ElasticStack elasticsearch:7.7.1 4h24m
xpack-7.8.0-v1 7.8.0 ElasticStack elasticsearch:7.8.0 4h24m
xpack-8.11.1 7.9.1 ElasticStack elasticsearch:7.9.1 4h24m
xpack-7.9.1-v2 7.9.1 ElasticStack elasticsearch:7.9.1 4h24m
xpack-8.2.3 8.2.0 ElasticStack elasticsearch:8.2.0 4h24m
xpack-8.5.2 8.5.2 ElasticStack elasticsearch:8.5.2 4h24m
Notice the DEPRECATED column. Here, true means that this ElasticsearchVersion is deprecated for the current KubeDB version. KubeDB will not work for deprecated ElasticsearchVersion.
In this tutorial, we will use xpack-8.2.3 ElasticsearchVersion CR to create an Elasticsearch cluster.
Note: An image with a higher modification tag will have more features and fixes than an image with a lower modification tag. Hence, it is recommended to use ElasticsearchVersion CRD with the highest modification tag to take advantage of the latest features. For example, use
xpack-8.11.1over7.9.1-xpack.
Create an Elasticsearch Cluster
The KubeDB operator implements an Elasticsearch CRD to define the specification of an Elasticsearch database.
The Elasticsearch instance used for this tutorial:
apiVersion: kubedb.com/v1alpha2
kind: Elasticsearch
metadata:
name: es-quickstart
namespace: demo
spec:
version: xpack-8.2.3
enableSSL: true
replicas: 3
storageType: Durable
storage:
storageClassName: "standard"
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 1Gi
terminationPolicy: Delete
Here,
spec.version- is the name of the ElasticsearchVersion CR. Here, an Elasticsearch of version8.2.0will be created withx-packsecurity plugin.spec.enableSSL- specifies whether the HTTP layer is secured with certificates or not.spec.replicas- specifies the number of Elasticsearch nodes.spec.storageType- specifies the type of storage that will be used for Elasticsearch database. It can beDurableorEphemeral. The default value of this field isDurable. IfEphemeralis used then KubeDB will create the Elasticsearch database usingEmptyDirvolume. In this case, you don’t have to specifyspec.storagefield. This is useful for testing purposes.spec.storagespecifies the StorageClass of PVC dynamically allocated to store data for this database. This storage spec will be passed to the StatefulSet created by the KubeDB operator to run database pods. You can specify any StorageClass available in your cluster with appropriate resource requests. If you don’t specifyspec.storageType: Ephemeral, then this field is required.spec.terminationPolicyspecifies what KubeDB should do when a user try to delete Elasticsearch CR. Termination policyDeletewill delete the database pods, secret and PVC when the Elasticsearch CR is deleted.
Note:
spec.storagesection is used to create PVC for database pod. It will create PVC with storage size specified in thestorage.resources.requestsfield. Don’t specifylimitshere. PVC does not get resized automatically.
Let’s create the Elasticsearch CR that is shown above:
$ kubectl apply -f https://github.com/kubedb/docs/raw/v2023.12.21/docs/guides/elasticsearch/quickstart/overview/elasticsearch/yamls/elasticsearch.yaml
elasticsearch.kubedb.com/es-quickstart created
The Elasticsearch’s STATUS will go from Provisioning to Ready state within few minutes. Once the STATUS is Ready, you are ready to use the database.
$ kubectl get elasticsearch -n demo -w
NAME VERSION STATUS AGE
es-quickstart xpack-8.2.3 Provisioning 7s
... ...
es-quickstart xpack-8.2.3 Ready 39s
Describe the Elasticsearch object to observe the progress if something goes wrong or the status is not changing for a long period of time:
$ kubectl describe elasticsearch -n demo es-quickstart
Name: es-quickstart
Namespace: demo
Labels: <none>
Annotations: <none>
API Version: kubedb.com/v1alpha2
Kind: Elasticsearch
Metadata:
Creation Timestamp: 2022-12-27T05:25:39Z
Finalizers:
kubedb.com
Generation: 1
Managed Fields:
API Version: kubedb.com/v1alpha2
Fields Type: FieldsV1
fieldsV1:
f:metadata:
f:annotations:
.:
f:kubectl.kubernetes.io/last-applied-configuration:
f:spec:
.:
f:enableSSL:
f:healthChecker:
.:
f:failureThreshold:
f:periodSeconds:
f:timeoutSeconds:
f:heapSizePercentage:
f:replicas:
f:storage:
.:
f:accessModes:
f:resources:
.:
f:requests:
.:
f:storage:
f:storageClassName:
f:storageType:
f:terminationPolicy:
f:version:
Manager: kubectl-client-side-apply
Operation: Update
Time: 2022-12-27T05:25:39Z
API Version: kubedb.com/v1alpha2
Fields Type: FieldsV1
fieldsV1:
f:metadata:
f:finalizers:
.:
v:"kubedb.com":
Manager: kubedb-provisioner
Operation: Update
Time: 2022-12-27T05:25:39Z
API Version: kubedb.com/v1alpha2
Fields Type: FieldsV1
fieldsV1:
f:status:
.:
f:conditions:
f:observedGeneration:
f:phase:
Manager: kubedb-provisioner
Operation: Update
Subresource: status
Time: 2022-12-27T05:25:39Z
Resource Version: 313887
UID: cf37390a-ab9f-4886-9f7e-1a5bedc975e7
Spec:
Auth Secret:
Name: es-quickstart-elastic-cred
Auto Ops:
Enable SSL: true
Health Checker:
Failure Threshold: 1
Period Seconds: 10
Timeout Seconds: 10
Heap Size Percentage: 50
Internal Users:
apm_system:
Backend Roles:
apm_system
Secret Name: es-quickstart-apm-system-cred
beats_system:
Backend Roles:
beats_system
Secret Name: es-quickstart-beats-system-cred
Elastic:
Backend Roles:
superuser
Secret Name: es-quickstart-elastic-cred
kibana_system:
Backend Roles:
kibana_system
Secret Name: es-quickstart-kibana-system-cred
logstash_system:
Backend Roles:
logstash_system
Secret Name: es-quickstart-logstash-system-cred
remote_monitoring_user:
Backend Roles:
remote_monitoring_collector
remote_monitoring_agent
Secret Name: es-quickstart-remote-monitoring-user-cred
Kernel Settings:
Privileged: true
Sysctls:
Name: vm.max_map_count
Value: 262144
Pod Template:
Controller:
Metadata:
Spec:
Affinity:
Pod Anti Affinity:
Preferred During Scheduling Ignored During Execution:
Pod Affinity Term:
Label Selector:
Match Labels:
app.kubernetes.io/instance: es-quickstart
app.kubernetes.io/managed-by: kubedb.com
app.kubernetes.io/name: elasticsearches.kubedb.com
Namespaces:
demo
Topology Key: kubernetes.io/hostname
Weight: 100
Pod Affinity Term:
Label Selector:
Match Labels:
app.kubernetes.io/instance: es-quickstart
app.kubernetes.io/managed-by: kubedb.com
app.kubernetes.io/name: elasticsearches.kubedb.com
Namespaces:
demo
Topology Key: failure-domain.beta.kubernetes.io/zone
Weight: 50
Container Security Context:
Capabilities:
Add:
IPC_LOCK
SYS_RESOURCE
Privileged: false
Run As User: 1000
Resources:
Limits:
Memory: 1536Mi
Requests:
Cpu: 500m
Memory: 1536Mi
Service Account Name: es-quickstart
Replicas: 3
Storage:
Access Modes:
ReadWriteOnce
Resources:
Requests:
Storage: 1Gi
Storage Class Name: standard
Storage Type: Durable
Termination Policy: Delete
Tls:
Certificates:
Alias: ca
Private Key:
Encoding: PKCS8
Secret Name: es-quickstart-ca-cert
Subject:
Organizations:
kubedb
Alias: transport
Private Key:
Encoding: PKCS8
Secret Name: es-quickstart-transport-cert
Subject:
Organizations:
kubedb
Alias: http
Private Key:
Encoding: PKCS8
Secret Name: es-quickstart-http-cert
Subject:
Organizations:
kubedb
Alias: client
Private Key:
Encoding: PKCS8
Secret Name: es-quickstart-client-cert
Subject:
Organizations:
kubedb
Version: xpack-8.2.3
Status:
Conditions:
Last Transition Time: 2022-12-27T05:25:39Z
Message: The KubeDB operator has started the provisioning of Elasticsearch: demo/es-quickstart
Reason: DatabaseProvisioningStartedSuccessfully
Status: True
Type: ProvisioningStarted
Last Transition Time: 2022-12-27T05:25:41Z
Message: Internal Users for Elasticsearch: demo/es-quickstart is ready.
Observed Generation: 1
Reason: InternalUsersCredentialsSyncedSuccessfully
Status: True
Type: InternalUsersSynced
Last Transition Time: 2022-12-27T05:28:48Z
Message: All desired replicas are ready.
Reason: AllReplicasReady
Status: True
Type: ReplicaReady
Last Transition Time: 2022-12-27T05:29:05Z
Message: The Elasticsearch: demo/es-quickstart is accepting client requests.
Observed Generation: 1
Reason: DatabaseAcceptingConnectionRequest
Status: True
Type: AcceptingConnection
Last Transition Time: 2022-12-27T05:29:05Z
Message: The Elasticsearch: demo/es-quickstart is ready.
Observed Generation: 1
Reason: ReadinessCheckSucceeded
Status: True
Type: Ready
Last Transition Time: 2022-12-27T05:29:06Z
Message: The Elasticsearch: demo/es-quickstart is accepting write requests.
Observed Generation: 1
Reason: DatabaseWriteAccessCheckSucceeded
Status: True
Type: DatabaseWriteAccess
Last Transition Time: 2022-12-27T05:29:13Z
Message: The Elasticsearch: demo/es-quickstart is successfully provisioned.
Observed Generation: 1
Reason: DatabaseSuccessfullyProvisioned
Status: True
Type: Provisioned
Last Transition Time: 2022-12-27T05:29:15Z
Message: The Elasticsearch: demo/es-quickstart is accepting read requests.
Observed Generation: 1
Reason: DatabaseReadAccessCheckSucceeded
Status: True
Type: DatabaseReadAccess
Observed Generation: 1
Phase: Ready
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal Successful 4m48s KubeDB Operator Successfully created governing service
Normal Successful 4m47s KubeDB Operator Successfully created Service
Normal Successful 4m47s KubeDB Operator Successfully created Service
Normal Successful 4m40s KubeDB Operator Successfully created Elasticsearch
Normal Successful 4m40s KubeDB Operator Successfully created appbinding
Normal Successful 4m40s KubeDB Operator Successfully governing service
Normal Successful 4m32s KubeDB Operator Successfully governing service
Normal Successful 99s KubeDB Operator Successfully governing service
Normal Successful 82s KubeDB Operator Successfully governing service
Normal Successful 74s KubeDB Operator Successfully governing service
Normal Successful 66s KubeDB Operator Successfully governing service
KubeDB Operator Generated Resources
On deployment of an Elasticsearch CR, the operator creates the following resources:
$ kubectl get all,secret,pvc -n demo -l 'app.kubernetes.io/instance=es-quickstart'
NAME READY STATUS RESTARTS AGE
pod/es-quickstart-0 1/1 Running 0 8m2s
pod/es-quickstart-1 1/1 Running 0 5m15s
pod/es-quickstart-2 1/1 Running 0 5m8s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/es-quickstart ClusterIP 10.96.209.204 <none> 9200/TCP 8m9s
service/es-quickstart-master ClusterIP None <none> 9300/TCP 8m9s
service/es-quickstart-pods ClusterIP None <none> 9200/TCP 8m10s
NAME READY AGE
statefulset.apps/es-quickstart 3/3 8m2s
NAME TYPE VERSION AGE
appbinding.appcatalog.appscode.com/es-quickstart kubedb.com/elasticsearch 8.2.0 8m2s
NAME TYPE DATA AGE
secret/es-quickstart-apm-system-cred kubernetes.io/basic-auth 2 8m8s
secret/es-quickstart-beats-system-cred kubernetes.io/basic-auth 2 8m8s
secret/es-quickstart-ca-cert kubernetes.io/tls 2 8m9s
secret/es-quickstart-client-cert kubernetes.io/tls 3 8m8s
secret/es-quickstart-config Opaque 1 8m8s
secret/es-quickstart-elastic-cred kubernetes.io/basic-auth 2 8m8s
secret/es-quickstart-http-cert kubernetes.io/tls 3 8m9s
secret/es-quickstart-kibana-system-cred kubernetes.io/basic-auth 2 8m8s
secret/es-quickstart-logstash-system-cred kubernetes.io/basic-auth 2 8m8s
secret/es-quickstart-remote-monitoring-user-cred kubernetes.io/basic-auth 2 8m8s
secret/es-quickstart-transport-cert kubernetes.io/tls 3 8m9s
NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS AGE
persistentvolumeclaim/data-es-quickstart-0 Bound pvc-e5227633-2fc0-4a50-a599-57cba8b31d14 1Gi RWO standard 8m2s
persistentvolumeclaim/data-es-quickstart-1 Bound pvc-fbacd36c-4132-4e2a-a5c5-91149054044c 1Gi RWO standard 5m15s
persistentvolumeclaim/data-es-quickstart-2 Bound pvc-9f9c6eaf-1ba6-4167-a37d-86eaf1f7e103 1Gi RWO standard 5m8s
StatefulSet- a StatefulSet named after the Elasticsearch instance. In topology mode, the operator creates 3 statefulSets with name{Elasticsearch-Name}-{Sufix}.Services- 3 services are generated for each Elasticsearch database.{Elasticsearch-Name}- the client service which is used to connect to the database. It points to theingestnodes.{Elasticsearch-Name}-master- the master service which is used to connect to the master nodes. It is a headless service.{Elasticsearch-Name}-pods- the node discovery service which is used by the Elasticsearch nodes to communicate each other. It is a headless service.
AppBinding- an AppBinding which hold to connect information for the database. It is also named after the ElasticsSecrets- 3 types of secrets are generated for each Elasticsearch database.{Elasticsearch-Name}-{username}-cred- the auth secrets which hold theusernameandpasswordfor the Elasticsearch users. The auth secretes-quickstart-elastic-credholds theusernameandpasswordforelasticuser which lets administrative access.{Elasticsearch-Name}-{alias}-cert- the certificate secrets which holdtls.crt,tls.key, andca.crtfor configuring the Elasticsearch database.{Elasticsearch-Name}-config- the default configuration secret created by the operator.data-{Elasticsearch-node-name}- the persistent volume claims created by the StatefulSet.
Connect with Elasticsearch Database
We will use port forwarding to connect with our Elasticsearch database. Then we will use curl to send HTTP requests to check cluster health to verify that our Elasticsearch database is working well.
Let’s port-forward the port 9200 to local machine:
$ kubectl port-forward -n demo svc/es-quickstart 9200
Forwarding from 127.0.0.1:9200 -> 9200
Forwarding from [::1]:9200 -> 9200
Now, our Elasticsearch cluster is accessible at localhost:9200.
Connection information:
Address:
localhost:9200Username:
$ kubectl get secret -n demo es-quickstart-elastic-cred -o jsonpath='{.data.username}' | base64 -d elasticPassword:
$ kubectl get secret -n demo es-quickstart-elastic-cred -o jsonpath='{.data.password}' | base64 -d vIHoIfHn=!Z8F4gP
Now let’s check the health of our Elasticsearch database.
$ curl -XGET -k -u 'elastic:vIHoIfHn=!Z8F4gP' "https://localhost:9200/_cluster/health?pretty"
{
"cluster_name" : "es-quickstart",
"status" : "green",
"timed_out" : false,
"number_of_nodes" : 3,
"number_of_data_nodes" : 3,
"active_primary_shards" : 3,
"active_shards" : 6,
"relocating_shards" : 0,
"initializing_shards" : 0,
"unassigned_shards" : 0,
"delayed_unassigned_shards" : 0,
"number_of_pending_tasks" : 0,
"number_of_in_flight_fetch" : 0,
"task_max_waiting_in_queue_millis" : 0,
"active_shards_percent_as_number" : 100.0
}
From the health information above, we can see that our Elasticsearch cluster’s status is green which means the cluster is healthy.
Halt Elasticsearch
KubeDB takes advantage of ValidationWebhook feature in Kubernetes 1.9.0 or later clusters to implement DoNotTerminate termination policy. If admission webhook is enabled, it prevents the user from deleting the database as long as the spec.terminationPolicy is set DoNotTerminate.
To halt the database, we have to set spec.terminationPolicy: to Halt by updating it,
$ kubectl edit elasticsearch -n demo es-quickstart
>> spec:
>> terminationPolicy: Halt
Now, if you delete the Elasticsearch object, the KubeDB operator will delete every resource created for this Elasticsearch CR, but leaves the auth secrets, and PVCs.
$ kubectl delete elasticsearch -n demo es-quickstart
elasticsearch.kubedb.com "es-quickstart" deleted
Check resources:
$ kubectl get all,secret,pvc -n demo -l 'app.kubernetes.io/instance=es-quickstart'
NAME TYPE DATA AGE
secret/es-quickstart-apm-system-cred kubernetes.io/basic-auth 2 5m39s
secret/es-quickstart-beats-system-cred kubernetes.io/basic-auth 2 5m39s
secret/es-quickstart-elastic-cred kubernetes.io/basic-auth 2 5m39s
secret/es-quickstart-kibana-system-cred kubernetes.io/basic-auth 2 5m39s
secret/es-quickstart-logstash-system-cred kubernetes.io/basic-auth 2 5m39s
secret/es-quickstart-remote-monitoring-user-cred kubernetes.io/basic-auth 2 5m39s
NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS AGE
persistentvolumeclaim/data-es-quickstart-0 Bound pvc-5b657e2a-6c32-4631-bac9-eefebbcb129a 1Gi RWO standard 5m29s
persistentvolumeclaim/data-es-quickstart-1 Bound pvc-e44d7ab8-fc2b-4cfe-9bef-74f2a2d875f5 1Gi RWO standard 5m23s
persistentvolumeclaim/data-es-quickstart-2 Bound pvc-dad75b1b-37ed-4318-a82a-5e38f04d36bc 1Gi RWO standard 5m18s
Resume Elasticsearch
Say, the Elasticsearch CR was deleted with spec.terminationPolicy to Halt and you want to re-create the Elasticsearch cluster using the existing auth secrets and the PVCs.
You can do it by simpily re-deploying the original Elasticsearch object:
$ kubectl apply -f https://github.com/kubedb/docs/raw/v2023.12.21/docs/guides/elasticsearch/quickstart/overview/elasticsearch/yamls/elasticsearch.yaml
elasticsearch.kubedb.com/es-quickstart created
Cleaning up
To cleanup the Kubernetes resources created by this tutorial, run:
$ kubectl patch -n demo elasticsearch es-quickstart -p '{"spec":{"terminationPolicy":"WipeOut"}}' --type="merge"
elasticsearch.kubedb.com/es-quickstart patched
$ kubectl delete -n demo es/quick-elasticsearch
elasticsearch.kubedb.com "es-quickstart" deleted
$ kubectl delete namespace demo
namespace "demo" deleted
Tips for Testing
If you are just testing some basic functionalities, you might want to avoid additional hassles due to some safety features that are great for the production environment. You can follow these tips to avoid them.
- Use
storageType: Ephemeral. Databases are precious. You might not want to lose your data in your production environment if the database pod fails. So, we recommend to usespec.storageType: Durableand provide storage spec inspec.storagesection. For testing purposes, you can just usespec.storageType: Ephemeral. KubeDB will use emptyDir for storage. You will not require to providespec.storagesection. - Use
terminationPolicy: WipeOut. It is nice to be able to resume the database from the previous one. So, we preserve all yourPVCsand authSecrets. If you don’t want to resume the database, you can just usespec.terminationPolicy: WipeOut. It will clean up every resouce that was created with the Elasticsearch CR. For more details, please visit here.
Next Steps
- Quickstart Kibana with KubeDB Operator.
- Learn how to configure Elasticsearch Topology Cluster.
- Learn about backup & restore Elasticsearch database using Stash.
- Monitor your Elasticsearch database with KubeDB using
out-of-the-boxbuiltin-Prometheus. - Monitor your Elasticsearch database with KubeDB using
out-of-the-boxPrometheus operator. - Detail concepts of Elasticsearch object.
- Use private Docker registry to deploy Elasticsearch with KubeDB.
- Want to hack on KubeDB? Check our contribution guidelines.
