SingleStore QuickStart
This tutorial will show you how to use KubeDB to run a SingleStore database.
Note: The yaml files used in this tutorial are stored in docs/guides/singlestore/quickstart/yamls folder in GitHub repository kubedb/docs.
Before You Begin
At first, you need to have a Kubernetes cluster, and the kubectl command-line tool must be configured to communicate with your cluster. If you do not already have a cluster, you can create one by using kind.
Now, install KubeDB cli on your workstation and KubeDB operator in your cluster following the steps here and make sure install with helm command including
--set global.featureGates.Singlestore=trueto ensure SingleStore crd.StorageClass is required to run KubeDB. Check the available StorageClass in cluster.
$ kubectl get storageclasses NAME PROVISIONER RECLAIMPOLICY VOLUMEBINDINGMODE ALLOWVOLUMEEXPANSION AGE standard (default) rancher.io/local-path Delete WaitForFirstConsumer false 6h22mTo keep things isolated, this tutorial uses a separate namespace called
demothroughout this tutorial.$ kubectl create ns demo namespace/demo created
Find Available SingleStoreVersion
When you have installed KubeDB, it has created SinglestoreVersion crd for all supported SingleStore versions. Check it by using the kubectl get singlestoreversions command. You can also use sdbv shorthand instead of singlestoreversions.
$ kubectl get singlestoreversions.catalog.kubedb.com
NAME VERSION DB_IMAGE DEPRECATED AGE
8.1.32 8.1.32 ghcr.io/appscode-images/singlestore-node:alma-8.1.32-e3d3cde6da 2d1h
8.5.30 8.5.30 ghcr.io/appscode-images/singlestore-node:alma-8.5.30-4f46ab16a5 2d1h
8.5.7 8.5.7 ghcr.io/appscode-images/singlestore-node:alma-8.5.7-bf633c1a54 2d1h
8.7.10 8.7.10 ghcr.io/appscode-images/singlestore-node:alma-8.7.10-95e2357384 2d1h
8.7.21 8.7.21 ghcr.io/appscode-images/singlestore-node:alma-8.7.21-f0b8de04d5 2d1h
8.9.3 8.9.3 ghcr.io/appscode-images/singlestore-node:alma-8.9.3-bfa36a984a 2d1h
Create SingleStore License Secret
We need SingleStore License to create SingleStore Database. So, Ensure that you have acquired a license and then simply pass the license by secret.
$ kubectl create secret generic -n demo license-secret \
--from-literal=username=license \
--from-literal=password='your-license-set-here'
secret/license-secret created
Create a SingleStore database
KubeDB implements a Singlestore CRD to define the specification of a SingleStore database. Below is the Singlestore object created in this tutorial.
apiVersion: kubedb.com/v1alpha2
kind: Singlestore
metadata:
name: sdb-quickstart
namespace: demo
spec:
version: "8.5.7"
topology:
aggregator:
replicas: 1
podTemplate:
spec:
containers:
- name: singlestore
resources:
limits:
memory: "2Gi"
cpu: "0.5"
requests:
memory: "2Gi"
cpu: "0.5"
storage:
storageClassName: "standard"
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 1Gi
leaf:
replicas: 2
podTemplate:
spec:
containers:
- name: singlestore
resources:
limits:
memory: "2Gi"
cpu: "0.5"
requests:
memory: "2Gi"
cpu: "0.5"
storage:
storageClassName: "standard"
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 10Gi
licenseSecret:
name: license-secret
storageType: Durable
deletionPolicy: WipeOut
serviceTemplates:
- alias: primary
spec:
type: LoadBalancer
ports:
- name: http
port: 9999
$ kubectl create -f https://github.com/kubedb/docs/raw/v2025.1.9/docs/guides/singlestore/quickstart/yamls/quickstart.yaml
singlestore.kubedb.com/sdb-quickstart created
Here,
spec.versionis the name of the SinglestoreVersion CRD where the docker images are specified. In this tutorial, a SingleStore8.5.37database is going to be created.spec.topologyspecifies that it will be used as cluster mode. If this field is nil it will be work as standalone mode.spec.topology.aggregator.replicasorspec.topology.leaf.replicasspecifies that the number replicas that will be used for aggregator or leaf.spec.storageTypespecifies the type of storage that will be used for SingleStore database. It can beDurableorEphemeral. Default value of this field isDurable. IfEphemeralis used then KubeDB will create SingleStore database usingEmptyDirvolume. In this case, you don’t have to specifyspec.storagefield. This is useful for testing purposes.spec.topology.aggregator.storageorspec.topology.leaf.storagespecifies the StorageClass of PVC dynamically allocated to store data for this database. This storage spec will be passed to the PetSet created by KubeDB operator to run database pods. You can specify any StorageClass available in your cluster with appropriate resource requests.spec.deletionPolicygives flexibility whether tonullify(reject) the delete operation ofSinglestorecrd or which resources KubeDB should keep or delete when you deleteSinglestorecrd. If admission webhook is enabled, It prevents users from deleting the database as long as thespec.deletionPolicyis set toDoNotTerminate. Learn details of allDeletionPolicyhere
Note:
spec.storagesection is used to create PVC for database pod. It will create PVC with storage size specified instorage.resources.requestsfield. Don’t specify limits here. PVC does not get resized automatically.
KubeDB operator watches for Singlestore objects using Kubernetes api. When a Singlestore object is created, KubeDB operator will create new PetSet and Service with the matching SingleStore object name. KubeDB operator will also create a governing service for PetSets, if one is not already present.
$ kubectl get petset -n demo
NAME READY AGE
sdb-quickstart-leaf 2/2 33s
sdb-quickstart-aggregator 1/1 37s
$ kubectl get pvc -n demo
NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS VOLUMEATTRIBUTESCLASS AGE
data-sdb-quickstart-leaf-0 Bound pvc-4f45c51b-47d4-4254-8275-782bf3588667 10Gi RWO standard <unset> 42s
data-sdb-quickstart-leaf-1 Bound pvc-769e68f4-80a9-4e3e-b2bc-e974534b9dee 10Gi RWO standard <unset> 35s
data-sdb-quickstart-aggregator-0 Bound pvc-75057e3d-e1d7-4770-905b-6049f2edbcde 1Gi RWO standard <unset> 46s
$ kubectl get pv -n demo
NAME CAPACITY ACCESS MODES RECLAIM POLICY STATUS CLAIM STORAGECLASS VOLUMEATTRIBUTESCLASS REASON AGE
pvc-4f45c51b-47d4-4254-8275-782bf3588667 10Gi RWO Delete Bound demo/data-sdb-quickstart-leaf-0 standard <unset> 87s
pvc-75057e3d-e1d7-4770-905b-6049f2edbcde 1Gi RWO Delete Bound demo/data-sdb-quickstart-master-aggregator-0 standard <unset> 91s
pvc-769e68f4-80a9-4e3e-b2bc-e974534b9dee 10Gi RWO Delete Bound demo/data-sdb-quickstart-leaf-1 standard <unset> 80s
$ kubectl get service -n demo
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
sdb-quickstart LoadBalancer 10.96.27.144 192.10.25.36 3306:32076/TCP,8081:30910/TCP 2m1s
sdb-quickstart-pods ClusterIP None <none> 3306/TCP 2m1s
KubeDB operator sets the status.phase to Running once the database is successfully created. Run the following command to see the modified Singlestore object:
➤ kubectl get sdb -n demo sdb-quickstart -oyaml
apiVersion: kubedb.com/v1alpha2
kind: Singlestore
metadata:
annotations:
kubectl.kubernetes.io/last-applied-configuration: |
{"apiVersion":"kubedb.com/v1alpha2","kind":"Singlestore","metadata":{"annotations":{},"name":"sdb-quickstart","namespace":"demo"},"spec":{"licenseSecret":{"name":"license-secret"},"serviceTemplates":[{"alias":"primary","spec":{"ports":[{"name":"http","port":9999}],"type":"LoadBalancer"}}],"storageType":"Durable","deletionPolicy":"WipeOut","topology":{"aggregator":{"podTemplate":{"spec":{"containers":[{"name":"singlestore","resources":{"limits":{"cpu":"0.5","memory":"2Gi"},"requests":{"cpu":"0.5","memory":"2Gi"}}}]}},"replicas":1,"storage":{"accessModes":["ReadWriteOnce"],"resources":{"requests":{"storage":"1Gi"}},"storageClassName":"standard"}},"leaf":{"podTemplate":{"spec":{"containers":[{"name":"singlestore","resources":{"limits":{"cpu":"0.5","memory":"2Gi"},"requests":{"cpu":"0.5","memory":"2Gi"}}}]}},"replicas":2,"storage":{"accessModes":["ReadWriteOnce"],"resources":{"requests":{"storage":"10Gi"}},"storageClassName":"standard"}}},"version":"8.5.7"}}
creationTimestamp: "2024-05-06T06:52:58Z"
finalizers:
- kubedb.com
generation: 2
name: sdb-quickstart
namespace: demo
resourceVersion: "448498"
uid: 29d6a814-e801-45b5-8217-b59fc77d84e5
spec:
authSecret:
name: sdb-quickstart-root-cred
healthChecker:
failureThreshold: 1
periodSeconds: 10
timeoutSeconds: 10
licenseSecret:
name: license-secret
podPlacementPolicy:
name: default
serviceTemplates:
- alias: primary
metadata: {}
spec:
ports:
- name: http
port: 9999
type: LoadBalancer
storageType: Durable
deletionPolicy: WipeOut
topology:
aggregator:
podPlacementPolicy:
name: default
podTemplate:
controller: {}
metadata: {}
spec:
containers:
- name: singlestore
resources:
limits:
cpu: 500m
memory: 2Gi
requests:
cpu: 500m
memory: 2Gi
securityContext:
allowPrivilegeEscalation: false
capabilities:
drop:
- ALL
runAsGroup: 998
runAsNonRoot: true
runAsUser: 999
seccompProfile:
type: RuntimeDefault
- name: singlestore-coordinator
resources:
limits:
memory: 256Mi
requests:
cpu: 200m
memory: 256Mi
securityContext:
allowPrivilegeEscalation: false
capabilities:
drop:
- ALL
runAsGroup: 998
runAsNonRoot: true
runAsUser: 999
seccompProfile:
type: RuntimeDefault
initContainers:
- name: singlestore-init
resources:
limits:
memory: 512Mi
requests:
cpu: 200m
memory: 512Mi
securityContext:
allowPrivilegeEscalation: false
capabilities:
drop:
- ALL
runAsGroup: 998
runAsNonRoot: true
runAsUser: 999
seccompProfile:
type: RuntimeDefault
securityContext:
fsGroup: 999
replicas: 1
storage:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 1Gi
storageClassName: standard
leaf:
podPlacementPolicy:
name: default
podTemplate:
controller: {}
metadata: {}
spec:
containers:
- name: singlestore
resources:
limits:
cpu: 500m
memory: 2Gi
requests:
cpu: 500m
memory: 2Gi
securityContext:
allowPrivilegeEscalation: false
capabilities:
drop:
- ALL
runAsGroup: 998
runAsNonRoot: true
runAsUser: 999
seccompProfile:
type: RuntimeDefault
- name: singlestore-coordinator
resources:
limits:
memory: 256Mi
requests:
cpu: 200m
memory: 256Mi
securityContext:
allowPrivilegeEscalation: false
capabilities:
drop:
- ALL
runAsGroup: 998
runAsNonRoot: true
runAsUser: 999
seccompProfile:
type: RuntimeDefault
initContainers:
- name: singlestore-init
resources:
limits:
memory: 512Mi
requests:
cpu: 200m
memory: 512Mi
securityContext:
allowPrivilegeEscalation: false
capabilities:
drop:
- ALL
runAsGroup: 998
runAsNonRoot: true
runAsUser: 999
seccompProfile:
type: RuntimeDefault
securityContext:
fsGroup: 999
replicas: 2
storage:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 10Gi
storageClassName: standard
version: 8.5.7
status:
conditions:
- lastTransitionTime: "2024-05-06T06:53:06Z"
message: 'The KubeDB operator has started the provisioning of Singlestore: demo/sdb-quickstart'
observedGeneration: 2
reason: DatabaseProvisioningStartedSuccessfully
status: "True"
type: ProvisioningStarted
- lastTransitionTime: "2024-05-06T06:56:05Z"
message: All Aggregator replicas are ready for Singlestore demo/sdb-quickstart
observedGeneration: 2
reason: AllReplicasReady
status: "True"
type: ReplicaReady
- lastTransitionTime: "2024-05-06T06:54:17Z"
message: database demo/sdb-quickstart is accepting connection
observedGeneration: 2
reason: AcceptingConnection
status: "True"
type: AcceptingConnection
- lastTransitionTime: "2024-05-06T06:54:17Z"
message: database demo/sdb-quickstart is ready
observedGeneration: 2
reason: AllReplicasReady
status: "True"
type: Ready
- lastTransitionTime: "2024-05-06T06:54:18Z"
message: 'The Singlestore: demo/sdb-quickstart is successfully provisioned.'
observedGeneration: 2
reason: DatabaseSuccessfullyProvisioned
status: "True"
type: Provisioned
phase: Ready
Connect with SingleStore database
KubeDB operator has created a new Secret called sdb-quickstart-root-cred (format: {singlestore-object-name}-root-cred) for storing the password for singlestore superuser. This secret contains a username key which contains the username for SingleStore superuser and a password key which contains the password for SingleStore superuser.
If you want to use an existing secret please specify that when creating the SingleStore object using spec.authSecret.name. While creating this secret manually, make sure the secret contains these two keys containing data username and password and also make sure of using root as value of username. For more details see here.
Now, we need username and password to connect to this database from kubectl exec command. In this example sdb-quickstart-root-cred secret holds username and password
$ kubectl get pod -n demo sdb-quickstart-master-aggregator-0 -oyaml | grep podIP
podIP: 10.244.0.14
$ kubectl get secrets -n demo sdb-quickstart-root-cred -o jsonpath='{.data.\username}' | base64 -d
root
$ kubectl get secrets -n demo sdb-quickstart-root-cred -o jsonpath='{.data.\password}' | base64 -d
J0h_BUdJB8mDO31u
we will exec into the pod sdb-quickstart-master-aggregator-0 and connect to the database using username and password
$ kubectl exec -it -n demo sdb-quickstart-aggregator-0 -- bash
Defaulting container name to singlestore.
Use 'kubectl describe pod/sdb-quickstart-aggregator-0 -n demo' to see all of the containers in this pod.
[memsql@sdb-quickstart-master-aggregator-0 /]$ memsql -uroot -p"J0h_BUdJB8mDO31u"
singlestore-client: [Warning] Using a password on the command line interface can be insecure.
Welcome to the MySQL monitor. Commands end with ; or \g.
Your MySQL connection id is 1114
Server version: 5.7.32 SingleStoreDB source distribution (compatible; MySQL Enterprise & MySQL Commercial)
Copyright (c) 2000, 2016, Oracle and/or its affiliates. All rights reserved.
Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.
Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.
singlestore> show databases;
+--------------------+
| Database |
+--------------------+
| cluster |
| information_schema |
| memsql |
| singlestore_health |
+--------------------+
4 rows in set (0.00 sec)
You can also connect with database management tools like singlestore-studio
You can simply access to SingleStore studio by forwarding the Primary service port to any of your localhost port. Or, Accessing through ExternalP’s 8081 port is also an option.
$ kubectl port-forward -n demo service/sdb-quickstart 8081
Forwarding from 127.0.0.1:8081 -> 8081
Forwarding from [::1]:8081 -> 8081
Lets, open your browser and go to the http://localhost:8081 or with TLS https://localhost:8081 then click on Add or Create Cluster option.
Then choose Add Existing Cluster and click on next and you will get an interface like that below:
After giving the all information you can see like this below UI image.

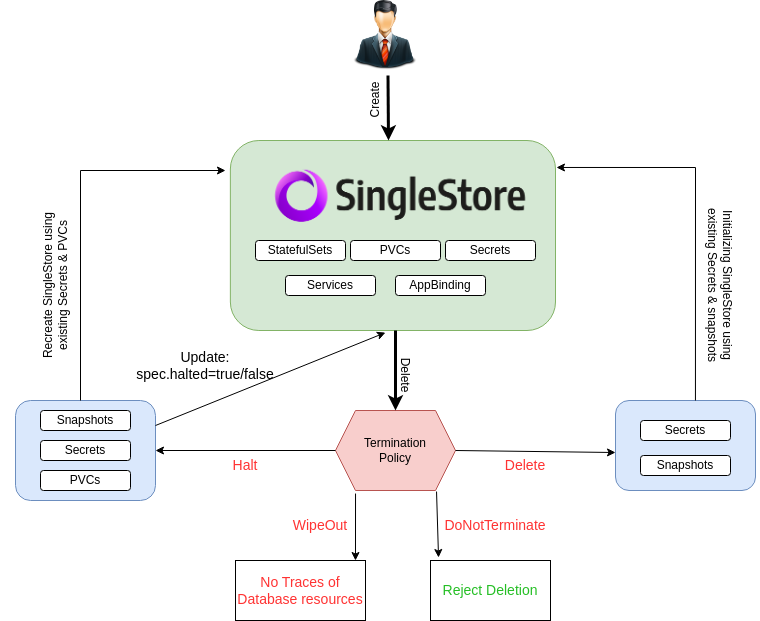

Database DeletionPolicy
This field is used to regulate the deletion process of the related resources when Singlestore object is deleted. User can set the value of this field according to their needs. The available options and their use case scenario is described below:
DoNotTerminate:
When deletionPolicy is set to DoNotTerminate, KubeDB takes advantage of ValidationWebhook feature in Kubernetes 1.9.0 or later clusters to implement DoNotTerminate feature. If admission webhook is enabled, It prevents users from deleting the database as long as the spec.deletionPolicy is set to DoNotTerminate. You can see this below:
$ kubectl delete sdb sdb-quickstart -n demo
The Singlestore "sdb-quickstart" is invalid: spec.deletionPolicy: Invalid value: "sdb-quickstart": Can not delete as deletionPolicy is set to "DoNotTerminate"
Now, run kubectl patch -n demo sdb sdb-quickstart -p '{"spec":{"deletionPolicy":"Halt"}}' --type="merge" to set spec.deletionPolicy to Halt (which deletes the singlestore object and keeps PVC, snapshots, Secrets intact) or remove this field (which default to Delete). Then you will be able to delete/halt the database.
Learn details of all DeletionPolicy here.
Halt:
Suppose you want to reuse your database volume and credential to deploy your database in future using the same configurations. But, right now you just want to delete the database except the database volumes and credentials. In this scenario, you must set the Singlestore object deletionPolicy to Halt.
When the DeletionPolicy is set to halt and the Singlestore object is deleted, the KubeDB operator will delete the PetSet and its pods but leaves the PVCs, secrets and database backup data(snapshots) intact. You can set the deletionPolicy to halt in existing database using patch command for testing.
At first, run kubectl patch -n demo sdb sdb-quickstart -p '{"spec":{"deletionPolicy":"Halt"}}' --type="merge". Then delete the singlestore object,
$ kubectl delete sdb sdb-quickstart -n demo
singlestore.kubedb.com "sdb-quickstart" deleted
Now, run the following command to get all singlestore resources in demo namespaces,
$ kubectl get petset,svc,secret,pvc -n demo
NAME TYPE DATA AGE
secret/sdb-quickstart-root-cred kubernetes.io/basic-auth 2 3m35s
NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS VOLUMEATTRIBUTESCLASS AGE
persistentvolumeclaim/data-sdb-quickstart-leaf-0 Bound pvc-389f40a8-09bc-4724-aa52-94705d56ff77 1Gi RWO standard <unset> 3m18s
persistentvolumeclaim/data-sdb-quickstart-leaf-1 Bound pvc-8dfbf04e-41a8-4cdd-ba14-7ad42d8701bb 1Gi RWO standard <unset> 3m11s
persistentvolumeclaim/data-sdb-quickstart-master-aggregator-0 Bound pvc-c4f7d255-7307-4455-b195-70c71b81706f 1Gi RWO standard <unset> 3m29s
From the above output, you can see that all singlestore resources(PetSet, Service, etc.) are deleted except PVC and Secret. You can recreate your singlestore again using this resources.
You can also set the
deletionPolicytoHalt(deprecated). It’s behavior same ashaltand right nowHaltis replaced byHalt.
Delete:
If you want to delete the existing database along with the volumes used, but want to restore the database from previously taken snapshots and secrets then you might want to set the Singlestore object deletionPolicy to Delete. In this setting, PetSet and the volumes will be deleted. If you decide to restore the database, you can do so using the snapshots and the credentials.
When the DeletionPolicy is set to Delete and the Singlestore object is deleted, the KubeDB operator will delete the PetSet and its pods along with PVCs but leaves the secret and database backup data(snapshots) intact.
Suppose, we have a database with deletionPolicy set to Delete. Now, are going to delete the database using the following command:
$ kubectl delete sdb sdb-quickstart -n demo
singlestore.kubedb.com "sdb-quickstart" deleted
Now, run the following command to get all singlestore resources in demo namespaces,
$ kubectl get petset,svc,secret,pvc -n demo
NAME TYPE DATA AGE
secret/sdb-quickstart-root-cred kubernetes.io/basic-auth 2 17m
From the above output, you can see that all singlestore resources(PetSet, Service, PVCs etc.) are deleted except Secret.
If you don’t set the deletionPolicy then the kubeDB set the DeletionPolicy to Delete by-default.
WipeOut:
You can totally delete the Singlestore database and relevant resources without any tracking by setting deletionPolicy to WipeOut. KubeDB operator will delete all relevant resources of this Singlestore database (i.e, PVCs, Secrets, Snapshots) when the deletionPolicy is set to WipeOut.
Suppose, we have a database with deletionPolicy set to WipeOut. Now, are going to delete the database using the following command:
$ kubectl delete sdb sdb-quickstart -n demo
singlestore.kubedb.com "singlestore-quickstart" deleted
Now, run the following command to get all singlestore resources in demo namespaces,
$ kubectl get petset,svc,secret,pvc -n demo
No resources found in demo namespace.
From the above output, you can see that all singlestore resources are deleted. There is no option to recreate/reinitialize your database if deletionPolicy is set to Delete.
Be careful when you set the
deletionPolicytoDelete. Because there is no option to trace the database resources if once deleted the database.
Cleaning up
To cleanup the Kubernetes resources created by this tutorial, run:
kubectl patch -n demo singlestore/sdb-quickstart -p '{"spec":{"deletionPolicy":"WipeOut"}}' --type="merge"
kubectl delete -n demo singlestore/sdb-quickstart
kubectl delete ns demo
Tips for Testing
If you are just testing some basic functionalities, you might want to avoid additional hassles due to some safety features that are great for production environment. You can follow these tips to avoid them.
- Use
storageType: Ephemeral. Databases are precious. You might not want to lose your data in your production environment if database pod fail. So, we recommend to usespec.storageType: Durableand provide storage spec inspec.storagesection. For testing purpose, you can just usespec.storageType: Ephemeral. KubeDB will use emptyDir for storage. You will not require to providespec.storagesection. - Use
deletionPolicy: WipeOut. It is nice to be able to delete everything created by KubeDB for a particular Singlestore crd when you delete the crd. For more details about deletion policy, please visit here.
