You are looking at the documentation of a prior release. To read the documentation of the latest release, please visit here.

New to KubeDB? Please start here.

KubeDB - SingleStore Cluster

This tutorial will show you how to use KubeDB to provision a singlestore cluster.

Before You Begin

Before proceeding:

Read singlestore cluster concept to learn about SingleStore cluster.
You need to have a Kubernetes cluster, and the kubectl command-line tool must be configured to communicate with your cluster. If you do not already have a cluster, you can create one by using kind.
Now, install KubeDB cli on your workstation and KubeDB operator in your cluster following the steps here.
To keep things isolated, this tutorial uses a separate namespace called demo throughout this tutorial. Run the following command to prepare your cluster for this tutorial:
```
$ kubectl create ns demo
namespace/demo created
```

Note: The yaml files used in this tutorial are stored in docs/examples/singlestore folder in GitHub repository kubedb/docs.

Create SingleStore License Secret

We need SingleStore License to create SingleStore Database. So, Ensure that you have acquired a license and then simply pass the license by secret.

$ kubectl create secret generic -n demo license-secret \
                --from-literal=username=license \
                --from-literal=password='your-license-set-here'
secret/license-secret created

Create a SingleStore database

KubeDB implements a Singlestore CRD to define the specification of a SingleStore database. Below is the Singlestore object created in this tutorial.

apiVersion: kubedb.com/v1alpha2
kind: Singlestore
metadata:
  name: sample-sdb
  namespace: demo
spec:
  version: "8.7.10"
  topology:
    aggregator:
      replicas: 1
      podTemplate:
        spec:
          containers:
          - name: singlestore
            resources:
              limits:
                memory: "2Gi"
                cpu: "0.6"
              requests:
                memory: "2Gi"
                cpu: "0.6"
      storage:
        storageClassName: "standard"
        accessModes:
          - ReadWriteOnce
        resources:
          requests:
            storage: 1Gi
    leaf:
      replicas: 2
      podTemplate:
        spec:
          containers:
          - name: singlestore
            resources:
              limits:
                memory: "2Gi"
                cpu: "0.6"
              requests:
                memory: "2Gi"
                cpu: "0.6"
      storage:
        storageClassName: "standard"
        accessModes:
          - ReadWriteOnce
        resources:
          requests:
            storage: 10Gi
  licenseSecret:
    name: license-secret
  storageType: Durable
  deletionPolicy: WipeOut

$ kubectl create -f https://github.com/kubedb/docs/raw/v2025.4.30/docs/guides/singlestore/clustering/singlestore-clustering/examples/sample-sdb.yaml
singlestore.kubedb.com/sample-sdb created

Here,

spec.version is the name of the SinglestoreVersion CRD where the docker images are specified. In this tutorial, a SingleStore 8.7.10 database is going to be created.
spec.topology specifies that it will be used as cluster mode. If this field is nil it will be work as standalone mode.
spec.topology.aggregator.replicas or spec.topology.leaf.replicas specifies that the number replicas that will be used for aggregator or leaf.
spec.storageType specifies the type of storage that will be used for SingleStore database. It can be Durable or Ephemeral. Default value of this field is Durable. If Ephemeral is used then KubeDB will create SingleStore database using EmptyDir volume. In this case, you don’t have to specify spec.storage field. This is useful for testing purposes.
spec.topology.aggregator.storage or spec.topology.leaf.storage specifies the StorageClass of PVC dynamically allocated to store data for this database. This storage spec will be passed to the PetSet created by KubeDB operator to run database pods. You can specify any StorageClass available in your cluster with appropriate resource requests.
spec.deletionPolicy gives flexibility whether to nullify(reject) the delete operation of Singlestore crd or which resources KubeDB should keep or delete when you delete Singlestore crd. If admission webhook is enabled, It prevents users from deleting the database as long as the spec.deletionPolicy is set to DoNotTerminate. Learn details of all DeletionPolicy here

Note: spec.storage section is used to create PVC for database pod. It will create PVC with storage size specified in storage.resources.requests field. Don’t specify limits here. PVC does not get resized automatically.

KubeDB operator watches for Singlestore objects using Kubernetes api. When a Singlestore object is created, KubeDB operator will create new PetSet and Service with the matching SingleStore object name. KubeDB operator will also create a governing service for PetSets, if one is not already present.

$ kubectl get petset,pvc,pv,svc -n demo
NAME                                                 AGE
petset.apps.k8s.appscode.com/sample-sdb-aggregator   16m
petset.apps.k8s.appscode.com/sample-sdb-leaf         16m

NAME                                                 STATUS   VOLUME                 CAPACITY   ACCESS MODES   STORAGECLASS                  VOLUMEATTRIBUTESCLASS   AGE
persistentvolumeclaim/data-sample-sdb-aggregator-0   Bound    pvc-a6c9041cba69454a   10Gi       RWO            linode-block-storage-retain   <unset>                 16m
persistentvolumeclaim/data-sample-sdb-leaf-0         Bound    pvc-674ba189a2f24383   10Gi       RWO            linode-block-storage-retain   <unset>                 16m
persistentvolumeclaim/data-sample-sdb-leaf-1         Bound    pvc-16e4224adec54d96   10Gi       RWO            linode-block-storage-retain   <unset>                 16m

NAME                                    CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS   CLAIM                               STORAGECLASS                  VOLUMEATTRIBUTESCLASS   REASON   AGE
persistentvolume/pvc-16e4224adec54d96   10Gi       RWO            Retain           Bound   demo/data-sample-sdb-leaf-1         linode-block-storage-retain   <unset>                          16m
persistentvolume/pvc-674ba189a2f24383   10Gi       RWO            Retain           Bound   demo/data-sample-sdb-leaf-0         linode-block-storage-retain   <unset>                          16m
persistentvolume/pvc-a6c9041cba69454a   10Gi       RWO            Retain           Bound   demo/data-sample-sdb-aggregator-0   linode-block-storage-retain   <unset>                          16m

NAME                      TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)             AGE
service/sample-sdb        ClusterIP   10.128.15.230   <none>        3306/TCP,8081/TCP   16m
service/sample-sdb-pods   ClusterIP   None            <none>        3306/TCP            16m

KubeDB operator sets the status.phase to Running once the database is successfully created. Run the following command to see the modified Singlestore object:

$ kubectl get sdb -n demo sample-sdb -oyaml
kind: Singlestore
metadata:
  annotations:
    kubectl.kubernetes.io/last-applied-configuration: |
      {"apiVersion":"kubedb.com/v1alpha2","kind":"Singlestore","metadata":{"annotations":{},"name":"sample-sdb","namespace":"demo"},"spec":{"deletionPolicy":"WipeOut","licenseSecret":{"name":"license-secret"},"storageType":"Durable","topology":{"aggregator":{"podTemplate":{"spec":{"containers":[{"name":"singlestore","resources":{"limits":{"cpu":"0.6","memory":"2Gi"},"requests":{"cpu":"0.6","memory":"2Gi"}}}]}},"replicas":1,"storage":{"accessModes":["ReadWriteOnce"],"resources":{"requests":{"storage":"1Gi"}}}},"leaf":{"podTemplate":{"spec":{"containers":[{"name":"singlestore","resources":{"limits":{"cpu":"0.6","memory":"2Gi"},"requests":{"cpu":"0.6","memory":"2Gi"}}}]}},"replicas":2,"storage":{"accessModes":["ReadWriteOnce"],"resources":{"requests":{"storage":"10Gi"}}}}},"version":"8.7.10"}}
  creationTimestamp: "2024-10-01T09:39:36Z"
  finalizers:
  - kubedb.com
  generation: 2
  name: sample-sdb
  namespace: demo
  resourceVersion: "117016"
  uid: 22b254e0-d185-413c-888f-ca4c2524e909
spec:
  authSecret:
    name: sample-sdb-root-cred
  deletionPolicy: WipeOut
  healthChecker:
    failureThreshold: 1
    periodSeconds: 10
    timeoutSeconds: 10
  licenseSecret:
    name: license-secret
  storageType: Durable
  topology:
    aggregator:
      podTemplate:
        controller: {}
        metadata: {}
        spec:
          containers:
          - name: singlestore
            resources:
              limits:
                cpu: 600m
                memory: 2Gi
              requests:
                cpu: 600m
                memory: 2Gi
            securityContext:
              allowPrivilegeEscalation: false
              capabilities:
                drop:
                - ALL
              runAsGroup: 998
              runAsNonRoot: true
              runAsUser: 999
              seccompProfile:
                type: RuntimeDefault
          - name: singlestore-coordinator
            resources:
              limits:
                memory: 256Mi
              requests:
                cpu: 200m
                memory: 256Mi
            securityContext:
              allowPrivilegeEscalation: false
              capabilities:
                drop:
                - ALL
              runAsGroup: 998
              runAsNonRoot: true
              runAsUser: 999
              seccompProfile:
                type: RuntimeDefault
          initContainers:
          - name: singlestore-init
            resources:
              limits:
                memory: 512Mi
              requests:
                cpu: 200m
                memory: 512Mi
            securityContext:
              allowPrivilegeEscalation: false
              capabilities:
                drop:
                - ALL
              runAsGroup: 998
              runAsNonRoot: true
              runAsUser: 999
              seccompProfile:
                type: RuntimeDefault
          podPlacementPolicy:
            name: default
          securityContext:
            fsGroup: 999
      replicas: 1
      storage:
        accessModes:
        - ReadWriteOnce
        resources:
          requests:
            storage: 1Gi
    leaf:
      podTemplate:
        controller: {}
        metadata: {}
        spec:
          containers:
          - name: singlestore
            resources:
              limits:
                cpu: 600m
                memory: 2Gi
              requests:
                cpu: 600m
                memory: 2Gi
            securityContext:
              allowPrivilegeEscalation: false
              capabilities:
                drop:
                - ALL
              runAsGroup: 998
              runAsNonRoot: true
              runAsUser: 999
              seccompProfile:
                type: RuntimeDefault
          - name: singlestore-coordinator
            resources:
              limits:
                memory: 256Mi
              requests:
                cpu: 200m
                memory: 256Mi
            securityContext:
              allowPrivilegeEscalation: false
              capabilities:
                drop:
                - ALL
              runAsGroup: 998
              runAsNonRoot: true
              runAsUser: 999
              seccompProfile:
                type: RuntimeDefault
          initContainers:
          - name: singlestore-init
            resources:
              limits:
                memory: 512Mi
              requests:
                cpu: 200m
                memory: 512Mi
            securityContext:
              allowPrivilegeEscalation: false
              capabilities:
                drop:
                - ALL
              runAsGroup: 998
              runAsNonRoot: true
              runAsUser: 999
              seccompProfile:
                type: RuntimeDefault
          podPlacementPolicy:
            name: default
          securityContext:
            fsGroup: 999
      replicas: 2
      storage:
        accessModes:
        - ReadWriteOnce
        resources:
          requests:
            storage: 10Gi
  version: 8.7.10
status:
  conditions:
  - lastTransitionTime: "2024-10-01T09:39:36Z"
    message: 'The KubeDB operator has started the provisioning of Singlestore: demo/sample-sdb'
    observedGeneration: 1
    reason: DatabaseProvisioningStartedSuccessfully
    status: "True"
    type: ProvisioningStarted
  - lastTransitionTime: "2024-10-01T09:57:51Z"
    message: All leaf replicas are ready for Singlestore demo/sample-sdb
    observedGeneration: 2
    reason: AllReplicasReady
    status: "True"
    type: ReplicaReady
  - lastTransitionTime: "2024-10-01T09:41:04Z"
    message: database demo/sample-sdb is accepting connection
    observedGeneration: 2
    reason: AcceptingConnection
    status: "True"
    type: AcceptingConnection
  - lastTransitionTime: "2024-10-01T09:41:04Z"
    message: database demo/sample-sdb is ready
    observedGeneration: 2
    reason: AllReplicasReady
    status: "True"
    type: Ready
  - lastTransitionTime: "2024-10-01T09:41:05Z"
    message: 'The Singlestore: demo/sample-sdb is successfully provisioned.'
    observedGeneration: 2
    reason: DatabaseSuccessfullyProvisioned
    status: "True"
    type: Provisioned
  phase: Ready

Connect with SingleStore database

KubeDB operator has created a new Secret called sample-sdb-root-cred (format: {singlestore-object-name}-root-cred) for storing the password for singlestore superuser. This secret contains a username key which contains the username for SingleStore superuser and a password key which contains the password for SingleStore superuser.

If you want to use an existing secret please specify that when creating the SingleStore object using spec.authSecret.name. While creating this secret manually, make sure the secret contains these two keys containing data username and password and also make sure of using root as value of username. For more details see here.

Now, we need username and password to connect to this database from kubectl exec command. In this example sample-sdb-root-cred secret holds username and password

$ kubectl get pod -n demo sample-sdb-master-aggregator-0 -oyaml | grep podIP
  podIP: 10.244.0.14
$ kubectl get secrets -n demo sample-sdb-root-cred -o jsonpath='{.data.\username}' | base64 -d
  root
$ kubectl get secrets -n demo sample-sdb-root-cred -o jsonpath='{.data.\password}' | base64 -d
  J0h_BUdJB8mDO31u

we will exec into the pod sample-sdb-master-aggregator-0 and connect to the database using username and password

$ kubectl exec -it -n demo sample-sdb-aggregator-0 -- bash
Defaulting container name to singlestore.
Use 'kubectl describe pod/sample-sdb-aggregator-0 -n demo' to see all of the containers in this pod.

[memsql@sample-sdb-master-aggregator-0 /]$ memsql -uroot -p"J0h_BUdJB8mDO31u"
singlestore-client: [Warning] Using a password on the command line interface can be insecure.
Welcome to the MySQL monitor.  Commands end with ; or \g.
Your MySQL connection id is 1114
Server version: 5.7.32 SingleStoreDB source distribution (compatible; MySQL Enterprise & MySQL Commercial)

Copyright (c) 2000, 2016, Oracle and/or its affiliates. All rights reserved.

Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

singlestore> show databases;
+--------------------+
| Database           |
+--------------------+
| cluster            |
| information_schema |
| memsql             |
| singlestore_health |
+--------------------+
4 rows in set (0.00 sec)

singlestore> CREATE TABLE playground.equipment ( id INT NOT NULL AUTO_INCREMENT, type VARCHAR(50), quant INT, color VARCHAR(25), PRIMARY KEY(id));
Query OK, 0 rows affected, 1 warning (0.27 sec)

singlestore> SHOW TABLES IN playground;
+----------------------+
| Tables_in_playground |
+----------------------+
| equipment            |
+----------------------+
1 row in set (0.00 sec)

singlestore> INSERT INTO playground.equipment (type, quant, color) VALUES ("slide", 2, "blue");
Query OK, 1 row affected (1.15 sec)

singlestore> SELECT * FROM playground.equipment;
+----+-------+-------+-------+
| id | type  | quant | color |
+----+-------+-------+-------+
|  1 | slide |     2 | blue  |
+----+-------+-------+-------+
1 row in set (0.14 sec)

singlestore> exit
Bye

You can also connect with database management tools like singlestore-studio

You can simply access to SingleStore studio by forwarding the Primary service port to any of your localhost port. Or, Accessing through ExternalP’s 8081 port is also an option.

$ kubectl port-forward -n demo service/sample-sdb 8081
Forwarding from 127.0.0.1:8081 -> 8081
Forwarding from [::1]:8081 -> 8081

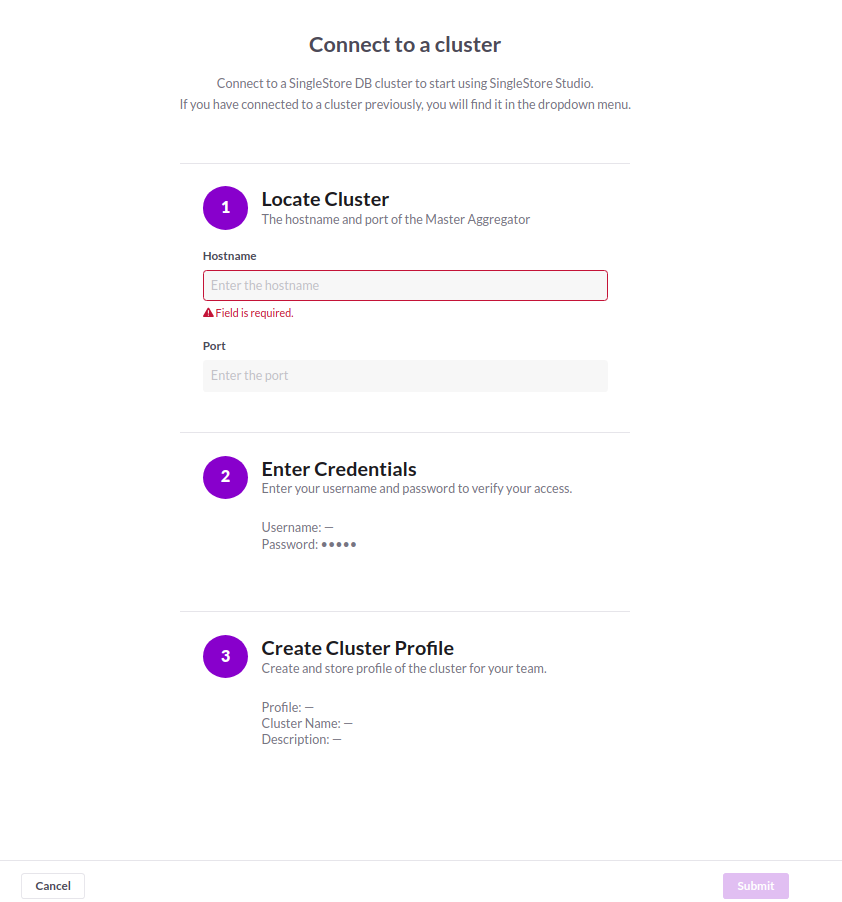

Lets, open your browser and go to the http://localhost:8081 or with TLS https://localhost:8081 then click on Add or Create Cluster option. Then choose Add Existing Cluster and click on next and you will get an interface like that below:

studio-1

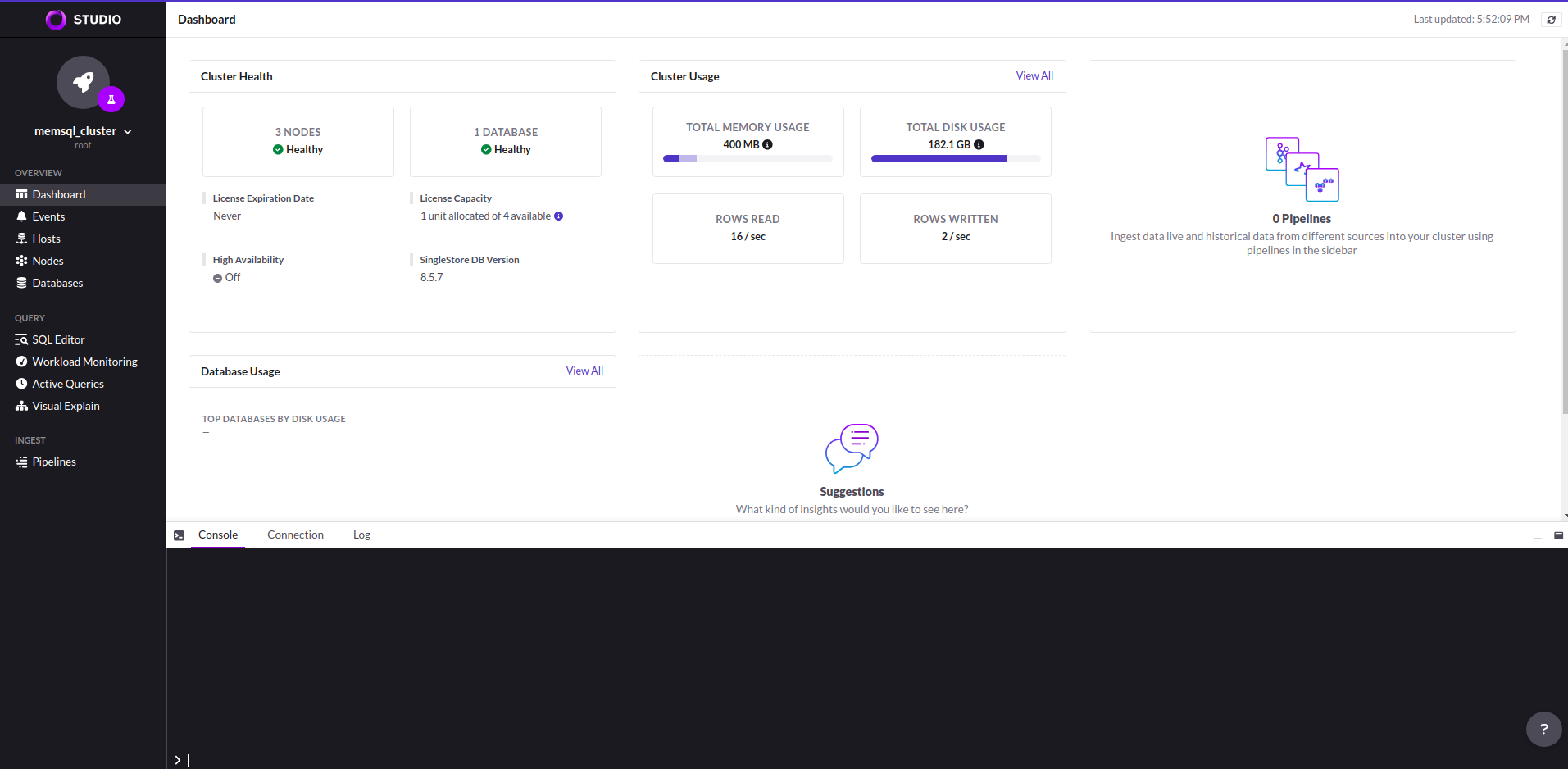

After giving the all information you can see like this below UI image.

studio-1

Cleaning up

To cleanup the Kubernetes resources created by this tutorial, run:

kubectl patch -n demo singlestore/sample-sdb -p '{"spec":{"deletionPolicy":"WipeOut"}}' --type="merge"
kubectl delete -n demo singlestore/sample-sdb
kubectl delete ns demo
