Ensuring Rock-Solid PostgreSQL Uptime
A Guide to KubeDB’s High Availability and Auto-Failover
In today’s data-driven world, database downtime is not just an inconvenience; it can be a critical business failure. For teams running stateful applications on Kubernetes, ensuring the resilience of their databases is paramount. This is where KubeDB steps in, offering a robust, cloud-native way to manage PostgreSQL on Kubernetes.
One of KubeDB’s most powerful features is its built-in support for High Availability (HA) and automated failover. The KubeDB operator continuously monitors the health of your PostgreSQL cluster and along with the db sidecar injected for maintaining failover, it can automatically respond to failures, ensuring your database remains available with minimal disruption.
This article will guide you through KubeDB’s automated failover capabilities for PostgreSQL. We will set up an HA cluster and then simulate a leader failure to see KubeDB’s auto-recovery mechanism in action.
You will see how fast the failover happens when it’s truly necessary. Failover in KubeDB-managed PostgreSQL will generally happen within 2–10 seconds depending on your cluster networking. There is an exception scenario that we discussed later in this doc where failover might take a bit longer up to 45 seconds. But that is a bit rare though.
Before You Start
To follow along with this tutorial, you will need:
- A running Kubernetes cluster.
- KubeDB installed in your cluster.
- kubectl command-line tool configured to communicate with your cluster.
Step 1: Create a High-Availability PostgreSQL Cluster
First, we need to deploy a PostgreSQL cluster configured for High Availability. Unlike a Standalone instance, a HA cluster consists of a primary pod and one or more standby pods that are ready to take over if the leader fails.
Save the following YAML as pg-ha-demo.yaml. This manifest defines a 3-node PostgreSQL cluster with streaming replication enabled.
apiVersion: kubedb.com/v1
kind: Postgres
metadata:
name: pg-ha-demo
namespace: demo
spec:
replicas: 3
storageType: Durable
podTemplate:
spec:
containers:
- name: postgres
resources:
requests:
cpu: "200m"
memory: "256Mi"
storage:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 7Gi
version: "17.2"
Now, create the namespace and apply the manifest:
# Create the namespace if it doesn't exist
kubectl create ns demo
# Apply the manifest to deploy the cluster
kubectl apply -f pg-ha-demo.yaml
You can monitor the status until all pods are ready:
watch kubectl get pg,petset,pods -n demo
See the database is ready.
➤ kubectl get pg,petset,pods -n demo
NAME VERSION STATUS AGE
postgres.kubedb.com/pg-ha-demo 17.2 Ready 4m45s
NAME AGE
petset.apps.k8s.appscode.com/pg-ha-demo 4m41s
NAME READY STATUS RESTARTS AGE
pod/pg-ha-demo-0 2/2 Running 0 4m41s
pod/pg-ha-demo-1 2/2 Running 0 2m45s
pod/pg-ha-demo-2 2/2 Running 0 2m39s
Inspect who is primary and who is standby.
# you can inspect who is primary
# and who is secondary like below
➤ kubectl get pods -n demo --show-labels | grep role
pg-ha-demo-0 2/2 Running 0 20m app.kubernetes.io/component=database,app.kubernetes.io/instance=pg-ha-demo,app.kubernetes.io/managed-by=kubedb.com,app.kubernetes.io/name=postgreses.kubedb.com,apps.kubernetes.io/pod-index=0,controller-revision-hash=pg-ha-demo-6c5954fd77,kubedb.com/role=primary,statefulset.kubernetes.io/pod-name=pg-ha-demo-0
pg-ha-demo-1 2/2 Running 0 19m app.kubernetes.io/component=database,app.kubernetes.io/instance=pg-ha-demo,app.kubernetes.io/managed-by=kubedb.com,app.kubernetes.io/name=postgreses.kubedb.com,apps.kubernetes.io/pod-index=1,controller-revision-hash=pg-ha-demo-6c5954fd77,kubedb.com/role=standby,statefulset.kubernetes.io/pod-name=pg-ha-demo-1
pg-ha-demo-2 2/2 Running 0 18m app.kubernetes.io/component=database,app.kubernetes.io/instance=pg-ha-demo,app.kubernetes.io/managed-by=kubedb.com,app.kubernetes.io/name=postgreses.kubedb.com,apps.kubernetes.io/pod-index=2,controller-revision-hash=pg-ha-demo-6c5954fd77,kubedb.com/role=standby,statefulset.kubernetes.io/pod-name=pg-ha-demo-2
The pod having kubedb.com/role=primary is the primary and kubedb.com/role=standby are the standby’s.
Lets create a table in the primary.
# find the primary pod
➤ kubectl get pods -n demo --show-labels | grep primary | awk '{ print $1 }'
pg-ha-demo-0
# exec into the primary pod
➤ kubectl exec -it -n demo pg-ha-demo-0 -- bash
Defaulted container "postgres" out of: postgres, pg-coordinator, postgres-init-container (init)
pg-ha-demo-0:/$ psql
psql (17.2)
Type "help" for help.
postgres=# create table hello(id int);
CREATE TABLE
Verify the table creation in standby’s.
➤ kubectl exec -it -n demo pg-ha-demo-1 -- bash
Defaulted container "postgres" out of: postgres, pg-coordinator, postgres-init-container (init)
pg-ha-demo-1:/$ psql
psql (17.2)
Type "help" for help.
postgres=# \dt
List of relations
Schema | Name | Type | Owner
--------+--------------------+-------+----------
public | hello | table | postgres # this was created in primary earlier, so replication working
public | kubedb_write_check | table | postgres
(2 rows)
Step 2: Simulating a Failover
Before simulating failover, let’s discuss how we handle these failover scenarios in KubeDB-managed Postgresql. We use sidecar container with all db pods, and inside that sidecar container, we use raft protocol to detect the viable primary of the postgresql cluster. Raft will choose a db pod as a leader of the postgresql cluster, we will check if that pod can really run as a leader. If everything is good with that chosen pod, we will run it as primary. This whole process of failover generally takes less than 10 seconds to complete. So you can expect very rapid failover to ensure high availability of your postgresql cluster.

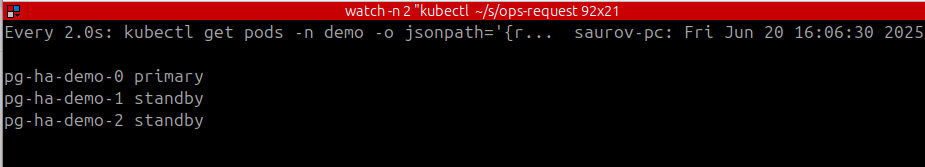

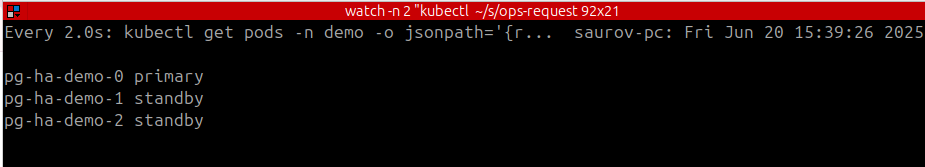

Now current running primary is pg-ha-demo-0. Let’s open another terminal and run the command below.
watch -n 2 "kubectl get pods -n demo -o jsonpath='{range .items[*]}{.metadata.name} {.metadata.labels.kubedb\\.com/role}{\"\\n\"}{end}'"
It will show current pg cluster roles.
Case 1: Delete the current primary
Lets delete the current primary and see how the role change happens almost immediately.
➤ kubectl delete pods -n demo pg-ha-demo-0
pod "pg-ha-demo-0" deleted

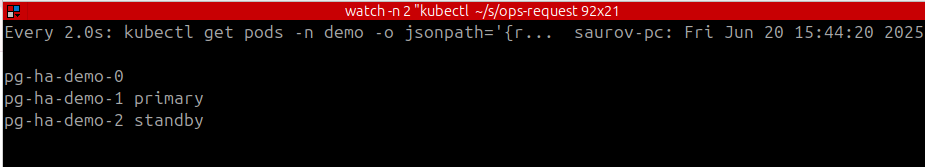

You see almost immediately the failover happened. Here’s what happened internally:
- Distributed raft algorithm implementation is running 24 * 7 in your each db sidecar. You can configure this behavior as shown below.
- As soon as
pg-ha-demo-0was being deleted and raft insidepg-ha-demo-0senses the termination, it immediately switches the leadership to any other viable leader before termination. - In our case, raft inside
pg-ha-demo-1got the leadership. - Now this leader switch only means raft leader switch, not the database leader switch(aka failover) yet. So
pg-ha-demo-1still running as replica. It will be primary after the next step. - Once raft sidecar inside
pg-ha-demo-1see it has become leader of the cluster, it initiates the database failover process and start running as primary. - So, now
pg-ha-demo-1is running as primary.
# You can find this part in your db yaml by running
# kubectl get pg -n demo pg-ha-demo -oyaml
# under db.spec section
# vist below link for more information
# https://github.com/kubedb/apimachinery/blob/97c18a62d4e33a112e5f887dc3ad910edf3f3c82/apis/kubedb/v1/postgres_types.go#L204
leaderElection:
electionTick: 10
heartbeatTick: 1
maximumLagBeforeFailover: 67108864
period: 300ms
transferLeadershipInterval: 1s
transferLeadershipTimeout: 1m0s
Now we know how failover is done, let’s check if the new primary is working.
➤ kubectl exec -it -n demo pg-ha-demo-1 -- bash
Defaulted container "postgres" out of: postgres, pg-coordinator, postgres-init-container (init)
pg-ha-demo-1:/$ psql
psql (17.2)
Type "help" for help.
postgres=# create table hi(id int);
CREATE TABLE # See we were able to create the database. so failover was successful.
postgres=#
You will see the deleted pod (pg-ha-demo-0) is brought back by the kubedb operator and it is now assigned to standby role.
Lets check if the standby(pg-ha-demo-0) got the updated data from new primary pg-ha-demo-1.
➤ kubectl exec -it -n demo pg-ha-demo-0 -- bash
Defaulted container "postgres" out of: postgres, pg-coordinator, postgres-init-container (init)
pg-ha-demo-0:/$ psql
psql (17.2)
Type "help" for help.
postgres=# \dt
List of relations
Schema | Name | Type | Owner
--------+--------------------+-------+----------
public | hello | table | postgres
public | hi | table | postgres # this was created in the new primary
public | kubedb_write_check | table | postgres
(3 rows)
Case 2: Delete the current primary and One replica
➤ kubectl delete pods -n demo pg-ha-demo-1 pg-ha-demo-2
pod "pg-ha-demo-1" deleted
pod "pg-ha-demo-2" deleted

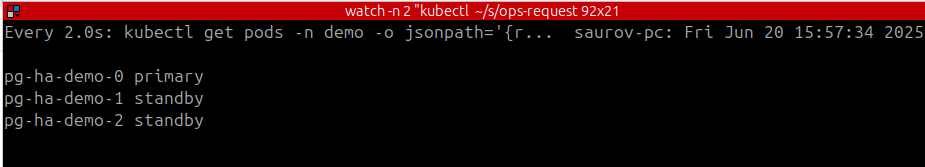

Again we can see the failover happened pretty quickly.
After 10-30 second, the deleted pods will be back and will have its role.
Lets validate the cluster state from new primary(pg-ha-demo-0).
➤ kubectl exec -it -n demo pg-ha-demo-0 -- bash
Defaulted container "postgres" out of: postgres, pg-coordinator, postgres-init-container (init)
pg-ha-demo-0:/$ psql
psql (17.2)
Type "help" for help.
postgres=# select * from pg_stat_replication;
pid | usesysid | usename | application_name | client_addr | client_hostname | client_port | backend_start | backend_xmin | state | sent_lsn | write_lsn | flush_lsn | replay_lsn | write_lag | flush_lag | replay_lag | sync_priority | sync_state | reply_time
------+----------+----------+------------------+-------------+-----------------+-------------+-------------------------------+--------------+-----------+-----------+-----------+-----------+------------+-----------------+-----------------+-----------------+---------------+------------+-------------------------------
1098 | 10 | postgres | pg-ha-demo-1 | 10.42.0.191 | | 49410 | 2025-06-20 09:56:36.989448+00 | | streaming | 0/70016A8 | 0/70016A8 | 0/70016A8 | 0/70016A8 | 00:00:00.000142 | 00:00:00.00066 | 00:00:00.000703 | 0 | async | 2025-06-20 09:59:40.217223+00
1129 | 10 | postgres | pg-ha-demo-2 | 10.42.0.192 | | 35216 | 2025-06-20 09:56:39.042789+00 | | streaming | 0/70016A8 | 0/70016A8 | 0/70016A8 | 0/70016A8 | 00:00:00.000219 | 00:00:00.000745 | 00:00:00.00079 | 0 | async | 2025-06-20 09:59:40.217308+00
(2 rows)

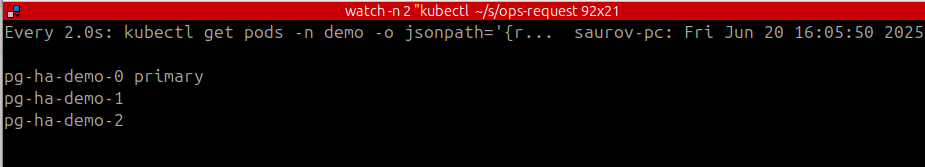

Case3: Delete any of the replica’s
Let’s delete both of the standby’s.
kubectl delete pods -n demo pg-ha-demo-1 pg-ha-demo-2
pod "pg-ha-demo-1" deleted
pod "pg-ha-demo-2" deleted
Shortly both of the pods will be back with its role.
Lets verify cluster state.
➤ kubectl exec -it -n demo pg-ha-demo-0 -- bash
Defaulted container "postgres" out of: postgres, pg-coordinator, postgres-init-container (init)
pg-ha-demo-0:/$ psql
psql (17.2)
Type "help" for help.
postgres=# select * from pg_stat_replication;
pid | usesysid | usename | application_name | client_addr | client_hostname | client_port | backend_start | backend_xmin | state | sent_lsn | write_lsn | flush_lsn | replay_lsn | write_lag | flush_lag | replay_lag | sync_priority | sync_state | reply_time
------+----------+----------+------------------+-------------+-----------------+-------------+-------------------------------+--------------+-----------+-----------+-----------+-----------+------------+-----------------+-----------------+-----------------+---------------+------------+-------------------------------
5564 | 10 | postgres | pg-ha-demo-2 | 10.42.0.194 | | 51560 | 2025-06-20 10:06:26.988807+00 | | streaming | 0/7014A58 | 0/7014A58 | 0/7014A58 | 0/7014A58 | 00:00:00.000178 | 00:00:00.000811 | 00:00:00.000848 | 0 | async | 2025-06-20 10:07:50.218299+00
5572 | 10 | postgres | pg-ha-demo-1 | 10.42.0.193 | | 36158 | 2025-06-20 10:06:27.980841+00 | | streaming | 0/7014A58 | 0/7014A58 | 0/7014A58 | 0/7014A58 | 00:00:00.000194 | 00:00:00.000818 | 00:00:00.000895 | 0 | async | 2025-06-20 10:07:50.218337+00
(2 rows)

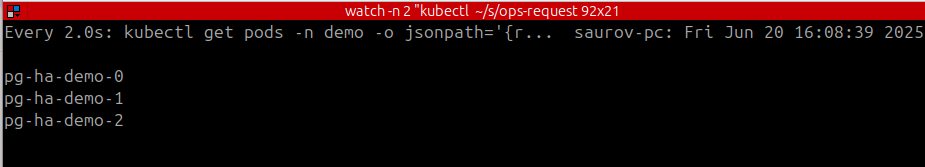

Case 4: Delete both primary and all replicas
Let’s delete all the pods.
➤ kubectl delete pods -n demo pg-ha-demo-0 pg-ha-demo-1 pg-ha-demo-2
pod "pg-ha-demo-0" deleted
pod "pg-ha-demo-1" deleted
pod "pg-ha-demo-2" deleted
Within 20-30 second, all of the pod should be back.
Lets verify the cluster state now.
➤ kubectl exec -it -n demo pg-ha-demo-0 -- bash
Defaulted container "postgres" out of: postgres, pg-coordinator, postgres-init-container (init)
pg-ha-demo-0:/$ psql
psql (17.2)
Type "help" for help.
postgres=# select * from pg_stat_replication;
pid | usesysid | usename | application_name | client_addr | client_hostname | client_port | backend_start | backend_xmin | state | sent_lsn | write_lsn | flush_lsn | replay_lsn | write_lag | flush_lag | replay_lag | sync_priority | sync_state | reply_time
-----+----------+----------+------------------+-------------+-----------------+-------------+-------------------------------+--------------+-----------+-----------+-----------+-----------+------------+-----------------+-----------------+-----------------+---------------+------------+-------------------------------
132 | 10 | postgres | pg-ha-demo-2 | 10.42.0.197 | | 34244 | 2025-06-20 10:09:20.27726+00 | | streaming | 0/9001848 | 0/9001848 | 0/9001848 | 0/9001848 | 00:00:00.00021 | 00:00:00.000841 | 00:00:00.000894 | 0 | async | 2025-06-20 10:11:02.527633+00
133 | 10 | postgres | pg-ha-demo-1 | 10.42.0.196 | | 40102 | 2025-06-20 10:09:20.279987+00 | | streaming | 0/9001848 | 0/9001848 | 0/9001848 | 0/9001848 | 00:00:00.000225 | 00:00:00.000848 | 00:00:00.000905 | 0 | async | 2025-06-20 10:11:02.527653+00
(2 rows)
We make sure the pod with highest lsn (you can think lsn as the highest data point available in your cluster) always run as primary, so if a case occur where the pod with highest lsn is being terminated, we will not perform the failover until the highest lsn pod is back online. So in a case, where that highest lsn primary is not recoverable, read this to do a force failover.
A Guide to Postgres Backup And Restore
You can configure Backup and Restore following the below documentation.
Youtube video Links: link
A Guide to Postgres PITR
Documentaion Link: PITR
Concepts and Demo: link
Basic Demo: link
Full Demo: link
