Monitoring Hazelcast Using Prometheus operator

Prometheus operator provides simple and Kubernetes native way to deploy and configure Prometheus server. This tutorial will show you how to use Prometheus operator to monitor Hazelcast database deployed with KubeDB.

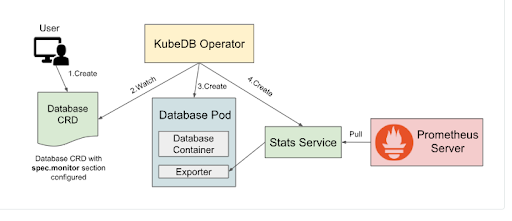

  Database Monitoring Flow

Before You Begin

  • At first, you need to have a Kubernetes cluster, and the kubectl command-line tool must be configured to communicate with your cluster. If you do not already have a cluster, you can create one by using kind.

  • To learn how Prometheus monitoring works with KubeDB in general, please visit here.

  • To keep Prometheus resources isolated, we are going to use a separate namespace called monitoring to deploy respective monitoring resources. We are going to deploy database in demo namespace.

  $ kubectl create ns monitoring
  namespace/monitoring created

  $ kubectl create ns demo
  namespace/demo created
  • We need a Prometheus operator instance running. If you don’t already have a running instance, deploy one following the docs from here.

  • If you already don’t have a Prometheus server running, deploy one following tutorial from here.

Note: YAML files used in this tutorial are stored in docs/examples/hazelcast folder in GitHub repository kubedb/docs.

Find out required labels for ServiceMonitor

We need to know the labels used to select ServiceMonitor by a Prometheus crd. We are going to provide these labels in spec.monitor.prometheus.labels field of Hazelcast crd so that KubeDB creates ServiceMonitor object accordingly.

At first, let’s find out the available Prometheus server in our cluster.

$ kubectl get prometheus -A
NAMESPACE    NAME                                    VERSION   DESIRED   READY   RECONCILED   AVAILABLE   AGE
monitoring   prometheus-kube-prometheus-prometheus   v2.54.1   1         1       True         True        11d

If you don’t have any Prometheus server running in your cluster, deploy one following the guide specified in Before You Begin section.

Now, let’s view the YAML of the available Prometheus server prometheus in monitoring namespace.

$ kubectl get prometheus -n monitoring prometheus-kube-prometheus-prometheus -oyaml
apiVersion: monitoring.coreos.com/v1
kind: Prometheus
metadata:
  annotations:
    meta.helm.sh/release-name: prometheus
    meta.helm.sh/release-namespace: monitoring
  creationTimestamp: "2025-05-30T05:23:20Z"
  generation: 1
  labels:
    app: kube-prometheus-stack-prometheus
    app.kubernetes.io/instance: prometheus
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/part-of: kube-prometheus-stack
    app.kubernetes.io/version: 72.6.4
    chart: kube-prometheus-stack-72.6.4
    heritage: Helm
    release: prometheus
  name: prometheus-kube-prometheus-prometheus
  namespace: monitoring
  resourceVersion: "1277397"
  uid: f38d5c58-fd41-43ff-91a7-8f137c4658e0
spec:
  affinity:
    podAntiAffinity:
      preferredDuringSchedulingIgnoredDuringExecution:
      - podAffinityTerm:
          labelSelector:
            matchExpressions:
            - key: app.kubernetes.io/name
              operator: In
              values:
              - prometheus
            - key: app.kubernetes.io/instance
              operator: In
              values:
              - prometheus-kube-prometheus-prometheus
          topologyKey: kubernetes.io/hostname
        weight: 100
  alerting:
    alertmanagers:
    - apiVersion: v2
      name: prometheus-kube-prometheus-alertmanager
      namespace: monitoring
      pathPrefix: /
      port: http-web
  automountServiceAccountToken: true
  enableAdminAPI: false
  evaluationInterval: 30s
  externalUrl: http://prometheus-kube-prometheus-prometheus.monitoring:9090
  hostNetwork: false
  image: quay.io/prometheus/prometheus:v3.4.0
  listenLocal: false
  logFormat: logfmt
  logLevel: info
  paused: false
  podMonitorNamespaceSelector: {}
  podMonitorSelector:
    matchLabels:
      release: prometheus
  portName: http-web
  probeNamespaceSelector: {}
  probeSelector:
    matchLabels:
      release: prometheus
  replicas: 1
  retention: 10d
  routePrefix: /
  ruleNamespaceSelector: {}
  ruleSelector:
    matchLabels:
      release: prometheus
  scrapeConfigNamespaceSelector: {}
  scrapeConfigSelector:
    matchLabels:
      release: prometheus
  scrapeInterval: 30s
  securityContext:
    fsGroup: 2000
    runAsGroup: 2000
    runAsNonRoot: true
    runAsUser: 1000
    seccompProfile:
      type: RuntimeDefault
  serviceAccountName: prometheus-kube-prometheus-prometheus
  serviceMonitorNamespaceSelector: {}
  serviceMonitorSelector:
    matchLabels:
      release: prometheus
  shards: 1
  tsdb:
    outOfOrderTimeWindow: 0s
  version: v3.4.0
  walCompression: true
status:
  availableReplicas: 1
  conditions:
  - lastTransitionTime: "2025-06-12T05:01:24Z"
    message: ""
    observedGeneration: 1
    reason: ""
    status: "True"
    type: Available
  - lastTransitionTime: "2025-06-12T05:01:24Z"
    message: ""
    observedGeneration: 1
    reason: ""
    status: "True"
    type: Reconciled
  paused: false
  replicas: 1
  selector: app.kubernetes.io/instance=prometheus-kube-prometheus-prometheus,app.kubernetes.io/managed-by=prometheus-operator,app.kubernetes.io/name=prometheus,operator.prometheus.io/name=prometheus-kube-prometheus-prometheus,prometheus=prometheus-kube-prometheus-prometheus
  shardStatuses:
  - availableReplicas: 1
    replicas: 1
    shardID: "0"
    unavailableReplicas: 0
    updatedReplicas: 1
  shards: 1
  unavailableReplicas: 0
  updatedReplicas: 1

Notice the spec.serviceMonitorSelector section. Here, release: prometheus label is used to select ServiceMonitor crd. So, we are going to use this label in spec.monitor.prometheus.labels field of Hazelcast crd.

Deploy Hazelcast with Monitoring Enabled

At first, let’s deploy a Hazelcast database with monitoring enabled. Below is the Hazelcast object that we are going to create.

apiVersion: kubedb.com/v1alpha2
kind: Hazelcast
metadata:
  name: operator-prom-hz
  namespace: demo
spec:
  monitor:
    agent: prometheus.io/operator
    prometheus:
      serviceMonitor:
        labels:
          release: prometheus
        interval: 10s
  deletionPolicy: Halt
  licenseSecret:
    name: hz-license-key
  replicas: 3
  version: 5.5.2
  storage:
    accessModes:
      - ReadWriteOnce
    resources:
      requests:
        storage: 2Gi
    storageClassName: standard

Here,

  • monitor.agent: prometheus.io/operator indicates that we are going to monitor this server using Prometheus operator.
  • monitor.prometheus.namespace: monitoring specifies that KubeDB should create ServiceMonitor in monitoring namespace.
  • monitor.prometheus.labels specifies that KubeDB should create ServiceMonitor with these labels.
  • monitor.prometheus.interval indicates that the Prometheus server should scrape metrics from this database with 10 seconds interval.

Let’s create the Hazelcast object that we have shown above,

$ kubectl create -f https://github.com/kubedb/docs/raw/v2025.8.31/docs/examples/hazelcast/monitoring/hazelcast-operator.yaml
hazelcast.kubedb.com/operator-prom-hz created

Now, wait for the database to go into Running state.

$ kubectl get hz -n demo
NAME               TYPE                  VERSION   STATUS   AGE
operator-prom-hz   kubedb.com/v1alpha2   5.5.2     Ready    55m

KubeDB will create a separate stats service with name {Hazelcast crd name}-stats for monitoring purpose.

$ kubectl get svc -n demo -l 'app.kubernetes.io/instance=operator-prom-hz'
NAME                     TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)     AGE
operator-prom-hz         ClusterIP   10.43.177.245   <none>        5701/TCP    56m
operator-prom-hz-pods    ClusterIP   None            <none>        5701/TCP    56m
operator-prom-hz-stats   ClusterIP   10.43.64.206    <none>        56790/TCP   56m

Here, operator-prom-hz-stats service has been created for monitoring purpose.

Let’s describe this stats service.

$ kubectl describe svc -n demo operator-prom-hz-stats
Name:                     operator-prom-hz-stats
Namespace:                demo
Labels:                   app.kubernetes.io/component=database
                          app.kubernetes.io/instance=operator-prom-hz
                          app.kubernetes.io/managed-by=kubedb.com
                          app.kubernetes.io/name=hazelcasts.kubedb.com
                          kubedb.com/role=stats
Annotations:              monitoring.appscode.com/agent: prometheus.io/operator
Selector:                 app.kubernetes.io/instance=operator-prom-hz,app.kubernetes.io/managed-by=kubedb.com,app.kubernetes.io/name=hazelcasts.kubedb.com
Type:                     ClusterIP
IP Family Policy:         SingleStack
IP Families:              IPv4
IP:                       10.43.64.206
IPs:                      10.43.64.206
Port:                     metrics  56790/TCP
TargetPort:               metrics/TCP
Endpoints:                10.42.0.58:56790,10.42.0.59:56790,10.42.0.60:56790
Session Affinity:         None
Internal Traffic Policy:  Cluster
Events:                   <none>

Notice the Labels and Port fields. ServiceMonitor will use these information to target its endpoints.

KubeDB will also create a ServiceMonitor crd in monitoring namespace that select the endpoints of operator-prom-hz-stats service. Verify that the ServiceMonitor crd has been created.

$ kubectl get servicemonitor -n demo
NAME                     AGE
operator-prom-hz-stats   125m

Let’s verify that the ServiceMonitor has the label that we had specified in spec.monitor section of Hazelcast crd.

$ kubectl get servicemonitor -n demo operator-prom-hz-stats -oyaml
apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  creationTimestamp: "2025-06-12T05:01:23Z"
  generation: 1
  labels:
    app.kubernetes.io/component: database
    app.kubernetes.io/instance: operator-prom-hz
    app.kubernetes.io/managed-by: kubedb.com
    app.kubernetes.io/name: hazelcasts.kubedb.com
    release: prometheus
  name: operator-prom-hz-stats
  namespace: demo
  ownerReferences:
  - apiVersion: v1
    blockOwnerDeletion: true
    controller: true
    kind: Service
    name: operator-prom-hz-stats
    uid: 22bac407-71ee-4fb5-a9d0-310840a05869
  resourceVersion: "1277360"
  uid: 221d5403-e133-4138-8e9b-a1472f93f069
spec:
  endpoints:
  - honorLabels: true
    interval: 10s
    path: /metrics
    port: metrics
  namespaceSelector:
    matchNames:
    - demo
  selector:
    matchLabels:
      app.kubernetes.io/component: database
      app.kubernetes.io/instance: operator-prom-hz
      app.kubernetes.io/managed-by: kubedb.com
      app.kubernetes.io/name: hazelcasts.kubedb.com
      kubedb.com/role: stats

Notice that the ServiceMonitor has label release: prometheus that we had specified in Hazelcast crd.

Also notice that the ServiceMonitor has selector which match the labels we have seen in the operator-prom-hz-stats service. It also, target the prom-http port that we have seen in the stats service.

Verify Monitoring Metrics

At first, let’s find out the respective Prometheus pod for prometheus Prometheus server.

$ kubectl get pod -n monitoring
NAME                                                     READY   STATUS    RESTARTS   AGE
alertmanager-prometheus-kube-prometheus-alertmanager-0   2/2     Running   0          13d
prometheus-grafana-6956bd7864-lggrr                      3/3     Running   0          13d
prometheus-kube-prometheus-operator-777c5cb7b4-dcmc5     1/1     Running   0          13d
prometheus-kube-state-metrics-f8fc86d54-x8qjk            1/1     Running   0          13d
prometheus-prometheus-kube-prometheus-prometheus-0       2/2     Running   0          13d
prometheus-prometheus-node-exporter-szndm                1/1     Running   0          13d

Prometheus server is listening to port 9090 of prometheus-prometheus-kube-prometheus-prometheus-0 pod. We are going to use port forwarding to access Prometheus dashboard.

Run following command on a separate terminal to forward the port 9090 of prometheus-prometheus-kube-prometheus-prometheus-0 pod,

$ kubectl port-forward -n monitoring prometheus-prometheus-kube-prometheus-prometheus-0 9090
Forwarding from 127.0.0.1:9090 -> 9090
Forwarding from [::1]:9090 -> 9090
Handling connection for 9090

Now, we can access the dashboard at localhost:9090. Open http://localhost:9090 in your browser. You should see prom-http endpoint of operator-prom-hz-stats service as one of the targets.

  Prometheus Target

Check the endpoint and service labels marked by red rectangle. It verifies that the target is our expected database. Now, you can view the collected metrics and create a graph from homepage of this Prometheus dashboard. You can also use this Prometheus server as data source for Grafana and create beautiful dashboard with collected metrics.

Cleaning up

To cleanup the Kubernetes resources created by this tutorial, run following commands

# cleanup database
kubectl delete sl -n demo operator-prom-sl

# cleanup prometheus resources
kubectl delete -n monitoring prometheus prometheus
kubectl delete -n monitoring clusterrolebinding prometheus
kubectl delete -n monitoring clusterrole prometheus
kubectl delete -n monitoring serviceaccount prometheus
kubectl delete -n monitoring service prometheus-operated

# cleanup prometheus operator resources
kubectl delete -n monitoring deployment prometheus-kube-prometheus-operator
kubectl delete -n dmeo serviceaccount prometheus-operator
kubectl delete clusterrolebinding prometheus-operator
kubectl delete clusterrole prometheus-operator

# delete namespace
kubectl delete ns monitoring
kubectl delete ns demo
