Vertical Scaling Qdrant

This guide will give you an overview of how KubeDB Ops Manager updates the resources(for example Memory, CPU etc.) of the Qdrant.

Before You Begin

• You should be familiar with the following KubeDB concepts:
  • Qdrant
  • QdrantOpsRequest

How Vertical Scaling Process Works

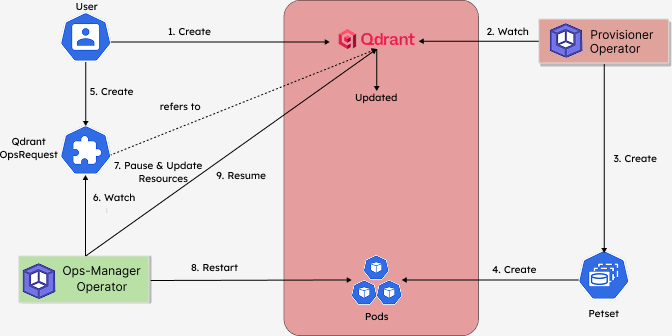

The following diagram shows how the KubeDB Ops Manager used to update the resources of the Qdrant. Open the image in a new tab to see the enlarged version.

  

The vertical scaling process consists of the following steps:

1. At first, a user creates a Qdrant CR.

2. KubeDB provisioner operator watches for the Qdrant CR.

3. When the operator finds a Qdrant CR, it creates a PetSet and related necessary stuff like secret, service, etc.

4. Then, in order to update the resources(for example CPU, Memory etc.) of the Qdrant cluster the user creates a QdrantOpsRequest CR with desired information.

5. KubeDB Ops Manager watches for QdrantOpsRequest.

6. When it finds one, it halts the Qdrant object so that the KubeDB provisioner operator doesn’t perform any operation on the Qdrant during the scaling process.

7. Then the KubeDB Ops-manager operator will update resources of the PetSet’s Pods to reach desired state.

8. After successful updating of the resources of the PetSet’s Pods, the KubeDB Ops Manager updates the Qdrant object resources to reflect the updated state.

9. After successful updating of the Qdrant resources, the KubeDB Ops Manager resumes the Qdrant object so that the KubeDB Provisioner operator resumes its usual operations.

Vertical Scaling Modes

KubeDB actuates vertical scaling in one of two modes, selected through the spec.verticalScaling.mode field of the QdrantOpsRequest:

• Restart (default): The operator patches the PetSet with the new resources and restarts the Pods (one at a time, honoring the database’s failover rules) so they come back with the updated CPU and Memory. This works on every Kubernetes cluster.
• InPlace: The operator resizes the running containers in place using the Kubernetes in-place Pod resize (pods/resize subresource) — no Pod restart, so scaling happens without downtime or failover. If a Node cannot accommodate the new resources (the resize is reported Infeasible), the operator automatically falls back to the Restart behavior for that Pod.

If spec.verticalScaling.mode is omitted, it defaults to Restart.

Note: InPlace mode relies on the Kubernetes InPlacePodVerticalScaling feature gate, which is enabled by default from Kubernetes v1.33. On older clusters, or when the feature gate is disabled, use Restart mode.

In the next doc, we are going to show a step-by-step guide on updating resources of Qdrant database using vertical scaling operation.
